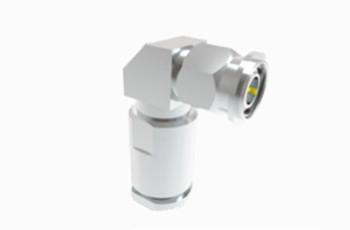

Stainless Steel TNC Type Male Right Angle RF Coaxial Connector

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	TNC-JW400CG
Certification :	ISO-9001-2015
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100,000 Pieces Per Month
Delivery Time :	Within 5-7 workdays(for stocks)

Add to Cart

Product Details
Company Profile

Stainless Steel TNC Type Male Right Angle RF Coaxial Connector

Stainless Steel TNC Type Male Right Angle RF Coaxial Connector

The TNC series presents a threaded iteration of the BNC connector, distinguished by its screw-thread mating and characterized as miniature, threaded, waterproof units with a consistent 50 Ohm impedance. These connectors operate effectively across a frequency range extending from DC to 11 GHz. Two variants are available: standard and reverse polarity. Constructed from die-cast and molded materials, these cost-effective connectors might not match the performance of premium industrial-grade products but are well-suited for a multitude of commercial applications. Widely employed in antenna connections, TNC connectors find extensive use in avionics, communications, and diverse industrial sectors. Additionally, reverse polarity and 75 Ohm variants cater to specific application needs.

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~4GHz
Rated Voltage	2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	750VRMS (Maximum sea-level)
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	≤6mΩ
	Center conductor	≤1.5mΩ
VSMR	≤1.3

Mechanical Specification

Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500Cycles
Contact Retention	10N min
Cable Retention	100N min
Mating Force	13.6N max
Un-Coupling Force	13.6N max

Features:

1. Good environmental resistance: usually made of brass or stainless steel, the surface treatment may include nickel-plated or gold-plated to improve corrosion resistance and prolong the service life, can be used in outdoor, humid, dusty and other harsh environments.
2. Multi-plugging: Capable of withstanding at least 500 plugging and unplugging operations without damage, which is especially important in applications that require frequent connections and disconnections.

Application:

1. Aviation control: In the aviation control system, TNC female connectors are used for the connection of related radio equipment to ensure the accuracy and reliability of aviation communications.
2. Medical equipment: In some medical equipment, such as MRI (Magnetic Resonance Imaging) and ultrasound equipment, TNC connectors are used to connect sensors and signal processing units to achieve high-precision medical detection and diagnosis.

Detailed Drawing of Stainless Steel TNC Type Male Right Angle RF Coaxial Connector :

Unit:(mm)

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
