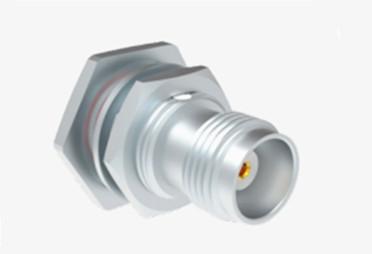

TNC Female Bulkhead RF Coaxial Connector for CXN3506/MF108A Cable

Mechanical Specification

Features:

1. Reliable threaded connection: The threaded connection is more solid than the snap type connection, which can ensure stable connection under high vibration environment, and usually has self-locking function, which can effectively prevent the connector from loosening.
2. Strong anti-loosening performance: the threaded connector has a self-locking function, which can effectively improve the reliability of the connection, avoiding the impact of signal transmission due to loosening.
3. Good waterproof performance: the connector part adopts sealed structure, which has good waterproof performance and is suitable for use in outdoor or humid environment.

Application:

1. Wireless base station construction: In wireless communication networks, such as 2G, 3G, 4G, 5G base station construction and maintenance, TNC cable connectors are used to connect base station equipment and antennae between the radio frequency cable, to ensure stable transmission of signals to ensure communication quality.
2. Satellite communication system: In the satellite ground station, TNC cable connector is used to connect satellite communication equipment and antenna feeder, to realize the transmission and reception of satellite signals, and to ensure the smoothness of the satellite communication link.
Radio and television industry

3. Program Production and Transmission: In the studio of radio and television stations, OB trucks and other places, TNC cable connectors are used to connect video cameras, microphones and other audio and video acquisition equipment and post-production equipment, as well as the production of program signals through the cable to the transmitter or broadcasting system, to ensure that the high quality of program signals transmitted.

Detailed Drawing:

Unit:(mm)

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
