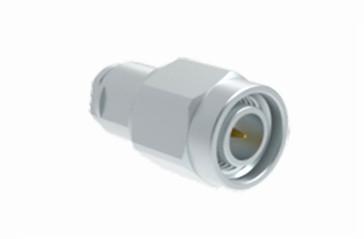

TNC Male Nickel Plated Material RF Coaxial Connector for MF147A/MF147B Cable

Product Categories

Xi'an Elite Electronic Industry Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

TNC Male Nickel Plated Material RF Coaxial Connector for MF147A/MF147B Cable

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	TNC-J416
Certification :	ISO-9001-2015
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100,000 Pieces Per Month
Delivery Time :	Within 5-7 workdays(for stocks)

Add to Cart

Product Details
Company Profile

TNC Male Nickel Plated Material RF Coaxial Connector for MF147A/MF147B Cable

2.TNC Male Nickel Plated Material RF Coaxial Connector for MF147A/MF147B Cable

The TNC series represents a threaded adaptation of the BNC connector, characterized by screw threads that facilitate secure mating. These compact, threaded, waterproof connectors maintain a consistent 50-ohm impedance and are designed for operation within the DC to 11 GHz frequency range. Two variants of TNC connectors exist: standard and reverse polarity. While constructed from die-cast and molded materials, making them more affordable and slightly less performant than industrial or high-performance alternatives, they excel in diverse commercial uses. Commonly employed in antenna connections, TNC connectors also find applications in radar systems, wireless communications, and broader industrial sectors. Additionally, reverse polarity and 75-ohm versions of TNC connectors are also accessible.

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~4GHz
Rated Voltage	2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	750VRMS (Maximum sea-level)
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	≤6mΩ
	Center conductor	≤1.5mΩ
VSMR	≤1.3

Mechanical Specification

Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500Cycles
Contact Retention	10N min
Cable Retention	100N min
Mating Force	13.6N max
Un-Coupling Force	13.6N max

Detailed Drawing

Features:

1. Corrosion resistance and durability: It has corrosion resistance, durability, dustproof and other properties, suitable for outdoor applications, and its material and surface treatment make it able to work stably for a long time in harsh environments.
2. High mechanical strength: usually made of brass, stainless steel and other metal materials, with good mechanical strength, can withstand a certain degree of external force and tension.

Application:

1. Fieldbus connection: In industrial automation control system, TNC cable connector can be used to connect fieldbus devices, such as programmable logic controller (PLC), distributed control system (DCS) and other communication cables, to realize the data transmission between the devices and the interaction of control commands, to improve the degree of automation and efficiency of industrial production.
2. Sensor and actuator connection: Used to connect various industrial sensors and actuators, such as temperature sensors, pressure sensors, motor drives, etc., to transmit the signals detected by the sensors to the control system, and at the same time transmit the control instructions to the actuators, to realize the precise monitoring and control of the production process.

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
