TNC Right Angle 4-hole Flange Female RF Coaxial Connector for CXN3506/MF108A

Mechanical Specification

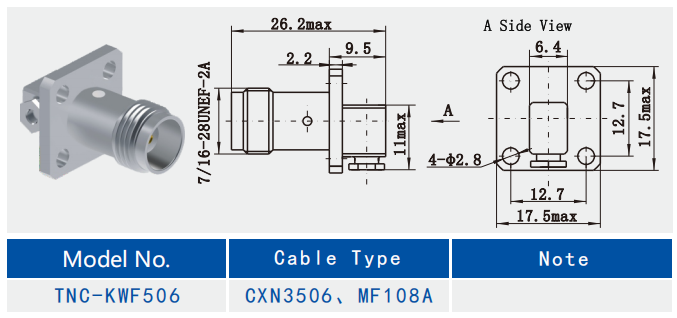

Detailed Drawing

Features:

1. High mechanical strength and durability: usually made of brass or stainless steel, the surface treatment may include nickel-plated or gold-plated, can withstand hundreds of times of plugging and unplugging operations without easy damage, but also can withstand a certain degree of tensile force and pressure, suitable for a variety of harsh environments.
2. Good waterproof performance: the connector part adopts a sealed structure with good waterproof performance, suitable for outdoor and other humid environments.

Application:

1. Satellite navigation measurement antenna: In the scenarios of geodetic surveying and mapping, oceanographic surveying, waterway surveying, dredging surveying, seismic monitoring, bridge deformation monitoring, landslide monitoring, and automatic operation of wharf, etc., TNC connector connects the satellite navigation measurement antenna with the external equipment, transmits the wireless signals and supplies power.
2. Aerospace field: Aviation control: In the aviation control system, TNC female connectors are used for the connection of related radio equipment to ensure the accuracy and reliability of aviation communication.

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!
