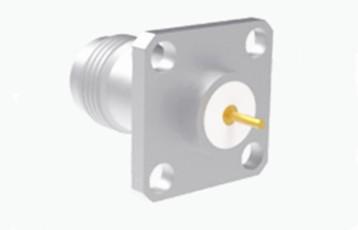

TNC Female 4-hole Flange Mount with Long Micro-strip RF Connector

Mechanical Specification

Environmental Specification:

Detailed Drawing


Features:
1. Miniaturization and lightweight: Microstrip TNC connectors are usually compact in design, small in size and light in weight, which makes it easy to be used in space-constrained equipment or circuits, such as modern communications equipment, electronic equipment in aerospace field, etc.
Multi-layer structure: generally composed of multiple layers of materials, including the conductive layer, dielectric layer and insulating layer. The conductive layer is used to transmit signals, the dielectric layer plays the role of support and insulation, and the insulating layer protects the internal structure and prevents signal leakage.
2. Gold Finger Connection: Some microstrip TNC connectors use gold finger connection, which has good electrical performance and mechanical stability, ensures reliable signal transmission, and facilitates connection with other microstrip circuits or components.

Application:
1. Avionics system: In the avionics system of the airplane, TNC connector can be used to connect the flight control system, navigation system, communication system and other key equipment, to ensure that the airplane in the process of flight data transmission and communication between the various systems is normal, to ensure flight safety.
2. Application scope: widely used in radio equipment and instruments for connecting RF coaxial cable, especially suitable for mobile communication equipment under vibration conditions, such as cell phone base station antenna connection, wireless communication equipment, internal line connection.
NOTE:
We have over 10,000 types of TNC Connector, if the connector you are using is not found, please contact us with your details.
