TNC Straight Male Stainless Steel RF Coaxial Connector for SFF-50-3-1 Cable

Mechanical Specification

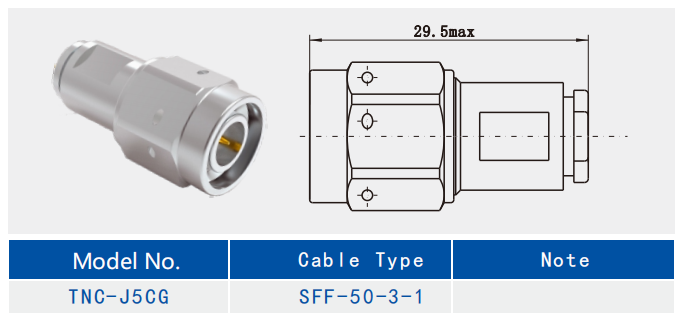

Detailed Drawing

Features:

1. Threaded connection: threaded connection, this connection makes the connection more solid and reliable, compared with bayonet and other connection methods, can better prevent accidental loosening, suitable for occasions that require high stability of the connection, such as in the vibration conditions of the mobile communication equipment.
2. Specific inner diameter of the outer conductor: the inner diameter of the outer conductor is 6.5mm (0.256 inches), and some common other types of RF coaxial connectors, such as BNC type, SMA type, etc. in the size of the obvious difference, easy to identify and differentiate between the use.

Application:

1. Wireless communication: It is used to connect wireless base stations, satellite communication equipment and radio transmitters to provide stable RF connection. In mobile communication, whether it is signal transmission between base stations or communication between base stations and mobile terminals, TNC connectors can ensure efficient and stable transmission of signals to meet the needs of large number of users communicating at the same time.
2. Wired communication: In the wired communication system such as local area network and metropolitan area network, TNC connectors can be used to connect various wired communication equipments, such as switches, routers, etc., to realize high-speed transmission of data and stable operation of the network.

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
