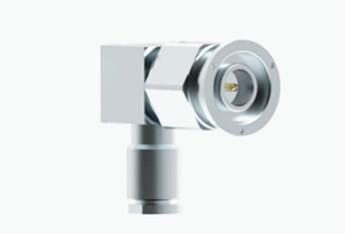

Nickel Plated TNC Male Right Angle Stainless Steel RF Coaxial Connector

Mechanical Specification

Detailed Drawing of Nickel Plated TNC Male Right Angle Stainless Steel RF Coaxial Connector :
Unit:(mm)

Features:
1. Structural design
Threaded connection: TNC connectors adopt threaded connection mechanism, this connection makes it can be tightly fixed when connecting, effectively preventing the connection from loosening due to vibration, pulling and other factors, to ensure the stability and reliability of the signal transmission, especially suitable for occasions with high requirements for connection stability, such as aerospace, communication base stations and so on.
Small and medium power: small and medium power connectors, its structure and electrical properties to meet the needs of small and medium power RF signal transmission, in general communications, test and measurement and other fields are widely used.
Mechanical performance
2. Strong vibration resistance: due to the use of threaded connections and robust structural design, TNC connectors have a high level of vibration resistance, able to maintain a stable connection in harsh mechanical environments, suitable for aviation, aerospace, and other fields in the presence of vibration and shock environments.
High reliability: After strict design and testing, TNC connectors have high reliability, can work stably for a long time, reduce the number of failures and maintenance, reduce the cost of use.

Application:
1. Wireless Communication Base Station
In mobile communication base stations, TNC connectors are used to connect transmitters, receivers, antennas and other equipment for RF signal transmission. Their good electrical properties, such as low loss and stable impedance matching characteristics, ensure that signals can be efficiently transmitted between devices, reducing signal attenuation and distortion. This is crucial to ensure the quality and coverage of mobile communications, whether it is voice calls or data transmission, which relies on a stable and reliable RF connection in which the TNC connector plays a key role.
2. Microwave communication systems
In microwave communication systems such as microwave relay stations and satellite communication ground stations, TNC connectors are used to connect microwave equipment such as mixers, up-converters, down-converters and power amplifiers. As microwave signals require high stability and accuracy in transmission, the high-precision manufacturing process and good electrical performance of TNC connectors can meet the demand for microwave signal transmission and ensure the accurate transmission of signals between different devices, thus guaranteeing the normal operation of microwave communication systems.

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!
