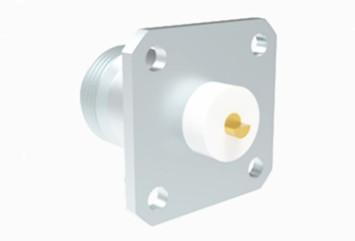

N Female Nickel Plated 4-hole Flange RF Coaxial Connector with
Microstrip
N type connectors are a type of threaded coupling coaxial
connectors that exhibit excellent anti-vibration capability and
electrical characteristics. They are capable of handling
frequencies up to 18 GHz and are suitable for various RF cables.
These connectors are widely used in applications such as aviation,
aerospace, radar, microwave and digital communications, test and
measurement instruments, and more.
We offer customization services for N type connectors to meet the
specific requirements of our customers.
Specification
Note:The specific data of the model are based on the data in the
product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~11GHz(Max.18GHz) |
| Rated Voltage | 1000VRMS*(Max.Sea Level) |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Durability | 500 Cycles |
Detailed Drawing
Features:
1. Strong durability: After special treatment and testing, it can
work stably in harsh environmental conditions, such as high
temperature, low temperature, humidity and other environments, and
has a long service life.
2. High Power Resistance: High power handling capability, able to
withstand high power RF signals, suitable for transmitters,
amplifiers and other applications that need to handle high power
signals.
3. Compatibility: Compatible with many types of cables, including
semi-rigid cables and flexible cables, etc., which has wider
applicability in practical applications.
Applications:
1. Aircraft communication system: In the communication, navigation,
radar and other systems on the aircraft, N-type connectors are used
to connect all kinds of electronic equipment and antennas, such as
VHF communication systems, air traffic control radar transponders,
meteorological radars, etc., to ensure that the aircraft in the
process of flight with the ground and the stability of the
communication between other aircraft and the transmission of data.
2. Satellite communication system: In the payload of the satellite,
it is used to connect the communication equipment, sensors, power
supply system, etc. on the satellite to realize the signal
transmission and data exchange between the satellite and the ground
station, and its high reliability and durability can be adapted to
the harsh conditions of the space environment.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us
with your details.
