N Male RF Coaxial Connector for CXN3450/MF740A Cable Solder Type
N-type connectors are a type of threaded coaxial connector known
for their excellent anti-vibration properties and electrical
performance, with a typical frequency range up to 11 GHz. However,
they can operate effectively up to 18 GHz. These connectors are
versatile and compatible with various types of RF cables, making
them widely used in industries such as aviation, aerospace, radar
systems, microwave communications, digital communications, and test
and measurement instruments.
Specification
Note:The specific data of the model are based on the data in the
product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~11GHz(Max.18GHz) |
| Rated Voltage | 1000VRMS*(Max.Sea Level) |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Durability | 500 Cycles |

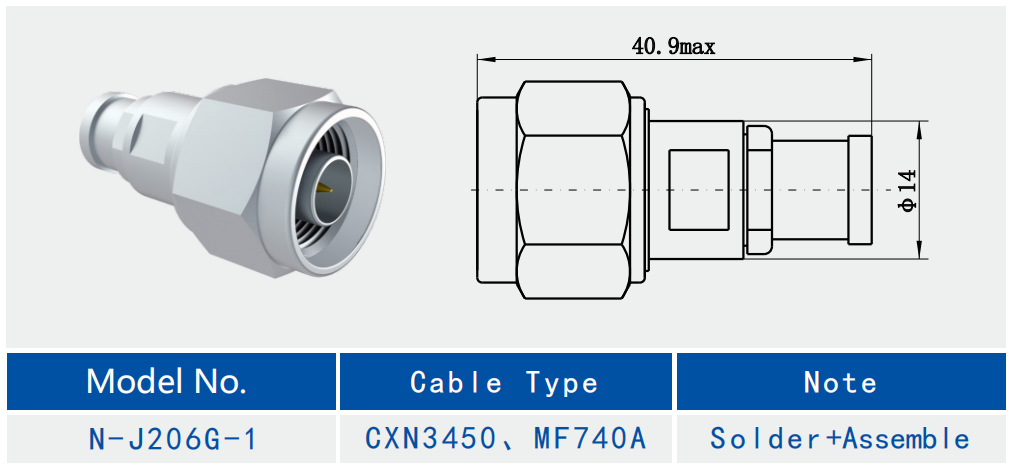

Detailed Drawing
Features:
1. Outer conductor: usually made of metal material, with good
electrical conductivity and mechanical strength, not only as a
signal transmission circuit, but also play a role in fixing and
protecting the internal parts.
2. Inner conductor: also made of metal material, and the outer
conductor together constitute the signal transmission channel, the
design needs to ensure that the signal transmission of low loss and
high efficiency.
3. Insulator: located between the inner and outer conductors, used
to isolate the two, to prevent signal short-circuit, the material
is usually selected dielectric constant stability, good temperature
resistance.
4. Locking mechanism: the use of threaded connections, through the
rotation of the lock to achieve a fast and reliable connection,
this design makes the connector in the vibration or shock
environment can also maintain a stable connection.
Applications:
1. Wireless communication equipment: N type splice cable RF
connectors play an important role in wireless communication
equipment, such as base stations, antenna systems, microwave
transmission equipment and so on. Its wide-bandwidth transmission
characteristics and low-loss performance to ensure stable signal
transmission.
2. Automotive electronic equipment: With the improvement of
automotive electronics, N-type connectors are also used in car
radar, navigation systems, wireless charging and other equipment to
meet the demand for high-frequency signal transmission.
3. Medical devices: In the field of medical devices, N type
connecting cable RF connectors can be used for wireless monitoring
of medical devices, data transmission, etc., to ensure the accuracy
and real-time medical data.
