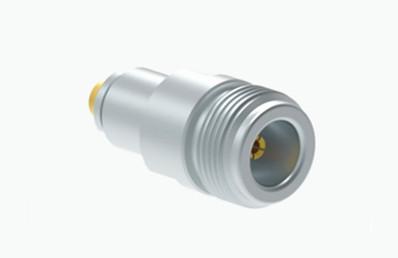

N Female Stainless Steel RF Coaxial Connector Clamp Mount for
MF147A/MF147B Cable
N-type connectors are threaded coaxial connectors renowned for
their robust anti-vibration capabilities and superior electrical
characteristics, with a typical frequency range of up to 11 GHz.
However, they can support frequencies up to 18 GHz. The threaded
coupling design ensures low noise and high resistance to shock and
vibration. Our LTI N connectors adhere to MIL-C-39012 standards.
These connectors are compatible with various RF cables and are
extensively used in industries such as aviation, aerospace, radar
systems, microwave communications, digital communications, and test
and measurement instruments.
We offer customization options for a variety of N-type connectors
and adapters to meet diverse customer requirements. Whether you
need straight or right-angle configurations, flange mount or
bulkhead mount, we can tailor solutions to your specific needs.
Specification
Note:The specific data of the model are based on the data in the
product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~11GHz(Max.18GHz) |
| Rated Voltage | 1000VRMS*(Max.Sea Level) |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Brass, Nickel Plated |
| Female | Phosphor Bronze, Nickel Plated |
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel | Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Durability | 500 Cycles |
Detailed Drawing
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Features:
1. Wide bandwidth transmission: supports a wide range of signal
frequencies, ranging from 0 to 11GHz, and the enhanced type can
even cover up to 18GHz, meeting the needs of a variety of RF
applications.
2. Low Loss: Adopting high quality materials and precise
manufacturing process, the loss generated during signal
transmission is extremely low, which helps to improve the
efficiency and quality of signal transmission.
3. High shielding: the shell is usually made of metal material with
good electromagnetic shielding performance, which can effectively
prevent the influence of external electromagnetic interference on
signal transmission.
4. Strong durability: After special treatment and testing, it can
work stably under harsh environmental conditions (such as high
temperature, low temperature, humidity, etc.) and has a long
service life.
Applications:
1. Aerospace: The aerospace field has extremely high performance
requirements for connectors, and N type splice cable RF connectors
are widely used in satellite communications, radar systems,
aircraft navigation and other key systems for their high
reliability, high temperature resistance, vibration resistance and
other characteristics.
2. Broadcasting and television equipment: In the broadcasting and
television transmission system, N-type connecting cable RF
connectors are used to connect transmitters, receivers, antennas
and other equipment to ensure high quality transmission of
broadcasting and television signals.
3. Industrial automation: In the industrial automation control
system, N-type connectors can be used to connect various sensors,
actuators and controllers to realize the rapid transmission of data
and the accurate execution of control instructions.
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We are looking forward to receiving your inquiry at an early date
.Please contact us what you need( Cable length/Connector)so we can
offer you theSPEC,And the best quality and service , competitive
price , timely response, delivery in time
