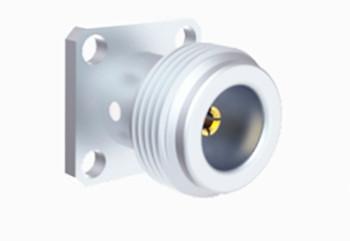

N Female Stainless Steel Solder Clamp RF Coaxial Connector for
2#Semi-rigid/flexible Cable
N-type connectors are threaded coaxial couplings renowned for their
robust anti-vibration properties and excellent electrical
characteristics. Our models can operate effectively up to 18 GHz.
These connectors are versatile, compatible with various types of RF
cables, and extensively used in aviation, aerospace, radar systems,
microwave communications, digital transmissions, and test and
measurement instruments.
We offer customization services for a wide range of N-type
connectors to meet specific customer requirements.
We provide customization services for a variety of N-type
connectors and adapters to meet specific customer requirements.
Whether you need straight or right-angle configurations, flange
mount or bulkhead mount options, we can tailor our products to fit
your unique needs.
Specification
Note:The specific data of the model are based on the data in the
product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~11GHz(Max.18GHz) |
| Rated Voltage | 1000VRMS*(Max.Sea Level) |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Durability | 500 Cycles |

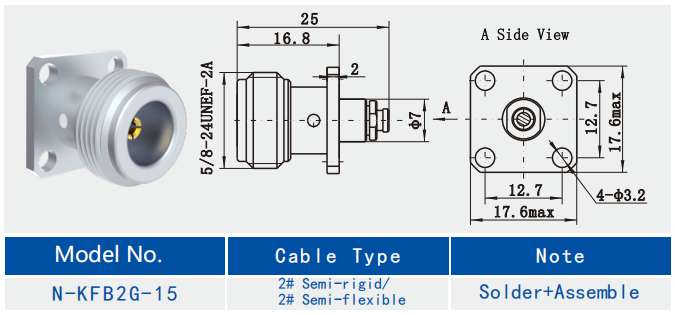

Detailed Drawing
Features:
1. Termination Method
Snap / Solder.
Crimp/solder.
Field replaceable type.
Welded or soldered/soldered.
2. Shape Classification
Straight type or right angle type.
4-hole flange type, press-in type, bulkhead type, 2-hole panel
type, 4-hole panel type or no-fit type.
Applications:
1. Aerospace: In the aerospace field, N-type RF coaxial connectors
also play a key role. It can withstand harsh environmental
conditions, such as high temperature, low temperature, humidity,
etc., and maintain a stable working condition to ensure the
reliability of signal transmission.
2. Radar system: Since N type RF coaxial connectors support signal
frequency range up to 18GHz, they are also widely used in radar
system. It can meet the demand of radar system for high-frequency
signal transmission.
3. Test Instruments: N type RF coaxial connectors are also an
indispensable part of test instruments. Its multiple connection
methods and good compatibility make it able to meet the needs of
different testing scenarios.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us
with your details.
