N Type Solder Clamp RF Coaxial Connector for CXN3506/MF108A Cable
The N series of connectors are meticulously designed and
manufactured to meet the specifications of MIL-C-39012, employing
threaded connections and utilizing air as the dielectric medium.
This design ensures exceptional electrical performance up to a
frequency of 11GHz. Our company's precision connectors are capable
of supporting frequencies up to 18GHz and are compatible with a
wide variety of radio frequency cables. These connectors are highly
regarded for their outstanding shock resistance, reliability, and
broad bandwidth capabilities. Consequently, they find extensive
applications in industries such as aviation, aerospace, radar,
microwave communication, digital telecommunications, and microwave
measurement. Additionally, the N-type connector is commonly used as
a test interface connector and is widely incorporated into various
testing instruments.
Specification
Note:The specific data of the model are based on the data in the
product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~11GHz(Max.18GHz) |
| Rated Voltage | 1000VRMS*(Max.Sea Level) |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Durability | 500 Cycles |

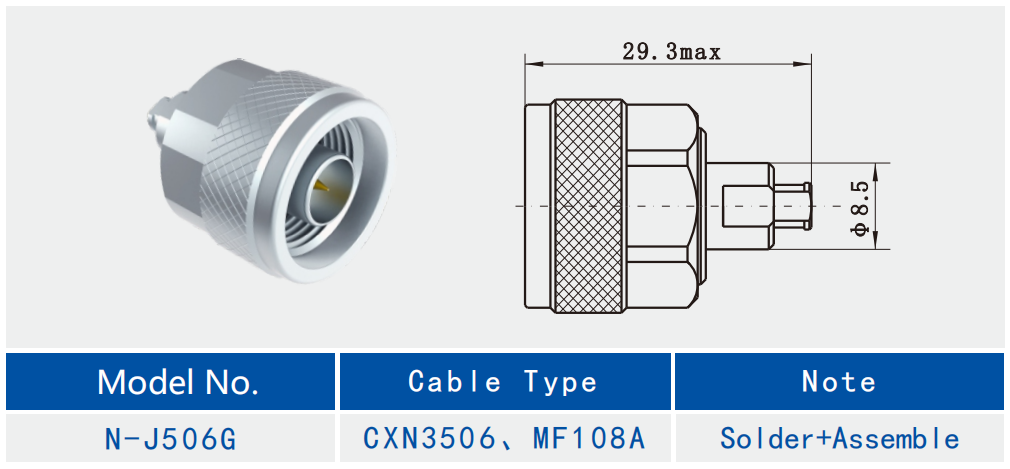

Detailed Drawing
Features
1. Material & Durability:
The body material of N-type connectors can be brass or stainless
steel. N-type connectors made of stainless steel are usually more
durable and cost more to manufacture.
2. Construction & Type:
N-type connectors are ruggedly constructed and are often used in
harsh working environments or in testing areas where repeated
plugging and unplugging is required.
It is categorized as male or female, and styles are available in
standard or reverse polarity.
The shape is categorized into straight or right-angle type as well
as 4-hole flange type, press-in type, bulkhead type, 2-hole panel
type, 4-hole panel type, or no-load type and many other types.
Applications
1. Communication Equipment: N-type connectors are employed in
various communication devices, including microwave equipment and
digital communication systems. They facilitate the connection of RF
cables or microstrip lines within RF circuits.
2. Test Instrumentation: Due to their excellent shielding
performance, N-type connectors are frequently used in test and
measurement equipment to ensure accurate signal transmission and
prevent electromagnetic interference.
3. Aerospace: N-type connectors are extensively used in military
communications, aerospace, and ground launch systems due to their
high reliability and robust resistance to vibrations.
4. Wireless Devices: In special applications requiring high levels
of protection, such as extreme temperatures, pressures, or
vibration environments, N-type connectors are an ideal choice.
5. Antennas and Radar Systems: N-type connectors are also commonly
found in antenna and radar systems to ensure stable signal
transmission and high-quality communication links.
6. Medical Devices: In some high-precision medical devices, N-type
connectors may also be used to connect sensors and transmit
signals, particularly in applications requiring miniaturized
connectors.
Product Cataloge
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us
with your details.
