MSSM Male Stainless Steel RF Coaxial Connector for
2#Semi-rigid/flexible Milimetere Wave
The 1.0 series connector is a cutting-edge millimeter-wave
connector designed for high-frequency applications, with the
capability to handle frequencies up to 110GHz. It is especially
suitable for millimeter-wave communication and radar systems. This
connector features an air interface threaded connection, ensuring
stable and reliable signal transmission. Its compact and
lightweight design allows for easy integration into various
systems, while its ultra-high frequency capabilities support
efficient signal transfer. In summary, the 1.0 series connector is
a versatile and reliable option for high-frequency applications.
Specifiacation:
Note:The specific data of the model are based on the data in the
product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~110GHz |
| Dielectrics Voltage-resistance | 250VRMS* |
| Insulation Resistance | ≥5000MΩ |
| VSWR | ≤1.1+0.005f |
| Quality Grade | High Performance Grade |
| Material & Mechanical Characteristics |
| Center conductor | Beryllium Bronze Gold plated |
| Outer conductor | Beryllium Bronze Gold plated; Stainless steel Passivation |
| Insulation Dielectric | PLF |
| Temperature Range | -55 ~ +125℃ |
Feature
1. Interchangeability and Compatibility: MSSM connectors are
compatible with the SSMA series of connectors, which means they can
be used interchangeably, providing users with more flexibility and
convenience. This compatibility allows users to choose the most
appropriate connector type for their specific needs.
2. High Reliability: MSSM connectors are known for their high
reliability and stability, and are able to maintain stable
performance under a variety of environmental conditions. This is
essential to ensure the continuity and reliability of communication
systems.
3. Wide range of applications: Due to their high-frequency
performance and miniaturized design, MSSM connectors are widely
used in millimeter-wave communications, radar systems, satellite
communications, and high-precision RF measurement equipment.

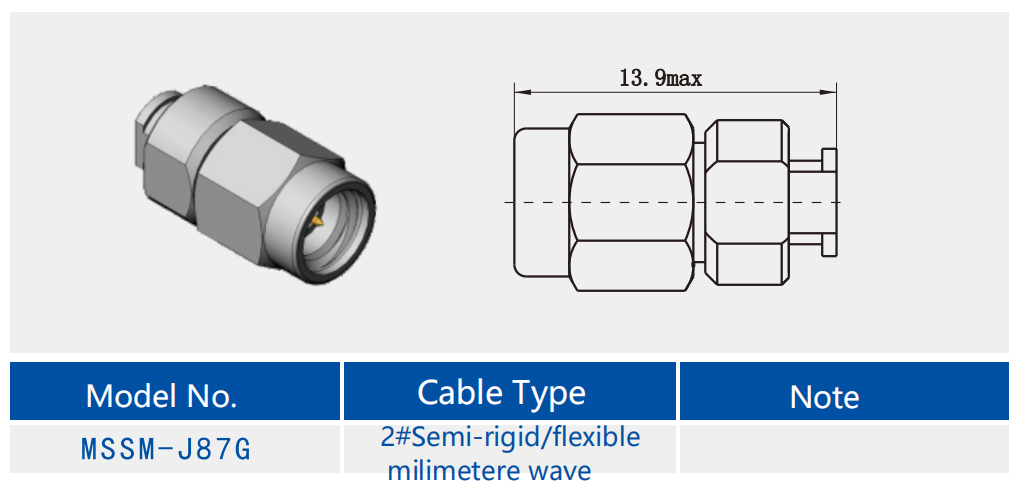

Outline Drawing(mm) and Picture of MSSM Male Stainless Steel RF Coaxial Connector for
2#Semi-rigid/flexible Milimetere Wave
Application:
1. High Precision RF Measurement Equipment: In the field of RF test
and measurement, precise connection is the key to ensure the
accuracy of the measurement results. the high performance
characteristics of MSSM connectors make them suitable for a variety
of high-precision RF measurement equipment.
2. Mobile base stations: mobile base stations require a large
number of RF connectors to realize the distribution and reception
of signals, the miniaturized design and high reliability of MSSM
connectors make them very suitable for the construction and
maintenance of mobile base stations.
3. Aerospace: In the aerospace field, the performance and
reliability of connectors are extremely high, and MSSM connectors
are able to meet these requirements, so they are widely used in
aerospace equipment.
