Milimeter Wave MSSM Series Female Stainless Steel RF Connector with
Microstrip
The MSSM product line consists of high-performance millimeter-wave
connectors capable of operating at frequencies up to 40GHz. These
connectors utilize air-dielectric threaded connections and are
interchangeable with the SSMA series. Noted for their compact size,
lightweight design, high operational frequency, and dependable
connectivity, MSSM connectors are extensively employed in
high-frequency microwave measurements and millimeter-wave devices.
Their features make them particularly suitable for applications
requiring limited space and high-frequency performance.
Specifiacation:
Note:The specific data of the model are based on the data in the
product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Dielectrics Voltage-resistance | 500VRMS* |
| Insulation Resistance | ≥5000MΩ |
| VSWR | ≤1.07+0.007f |
| Quality Grade | High Performance Grade |
| Material & Mechanical Characteristics |
| Center conductor | Beryllium Bronze Gold plated |
| Outer conductor | Beryllium Bronze Gold plated; Stainless steel Passivation |
| Insulation Dielectric | PLF/PEI |
| Temperature Range | -55 ~ +125℃ |
Feature:
1.Basic structure
Inner conductor: center pin plug, used to connect the cable and the
interface of the device to achieve information interconnection.
Outer conductor: Cylindrical socket that serves the function of
protecting and fixing the connector from the external environment.
Insulator: Located between the inner and outer conductors to
prevent signal interference and short circuit.
2. Operating Frequency: Depends on the physical structure of the
connector, including the size of the inner and outer conductors,
the nature of the dielectric material, and so on.
3. VSWR (VSWR): one of the important indicators of the connector's
merits, the lower the VSWR, the better the performance.
4. Insertion loss: signal loss caused by the signal transmission
process, the smaller the connector signal transmission efficiency
is higher.

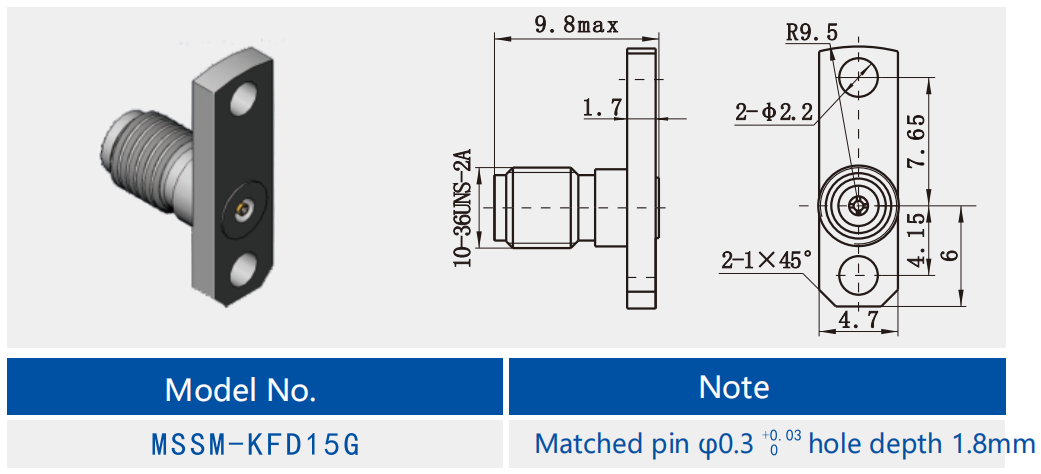

Outline Drawing(mm) and Picture of Milimeter Wave MSSM Series Female Stainless Steel RF Connector with
Microstrip
Application:
1. Communication field: In mobile communication, wireless data,
paging system and other equipment, MSSM RF coaxial connectors are
used to transmit microwave frequency signals to ensure stable
transmission of high-frequency signals.
2. Broadcasting field: In the broadcasting system, MSSM RF coaxial
connectors are used to connect the transmitter and antenna to
realize the transmission of TV signals. Its good electrical
performance and mechanical durability ensure the stable
transmission of broadcasting signals.
