The SMA series of RF coaxial connectors are celebrated for their compact design and high-frequency performance, operating effectively up to 18GHz. They provide numerous advantages, including a small form factor, wide bandwidth, excellent mechanical and electrical properties, and reliable connections. These features have made them one of the most popular types of RF coaxial connectors. They are widely used in industries such as aerospace, marine, and various other fields.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
Electrical Characteristics | |||
Impedance | 50Ω | ||
Frequency Range | 0.3ZHz-18GHz | ||
Dielectrics Voltage-resistance | 1000VRMS | ||
Insulation Resistance | ≥5000MΩ(DC:500V) | ||
Center Resistance | Center Conductor | ≤3.0mΩ | |
Outer Conductor | ≤2.0mΩ | ||
Material & Mechanical Characteristics | |||
Fixation of the center contact | ≥26.7 | ||
Durability | 500times | ||
Cable Retention | Minimum cable retention force | ||
Temperature | -55°C~+125°C |

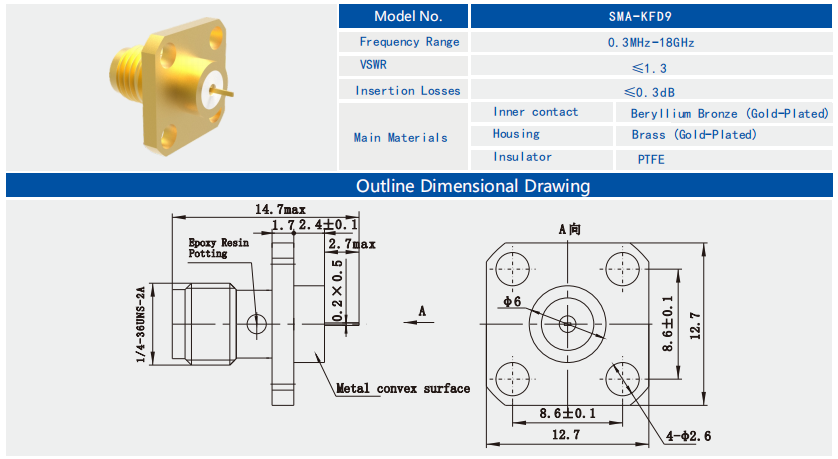

Outline Drawing:(mm)
Features:
Application:
1. Spacecraft Communication System:
Signal Transmission Connection: In the communication systems of
satellites and other spacecraft, SMA connectors are utilized to
link various RF cables and equipment, ensuring stable signal
transmission. For instance, in the communication link between
satellites and ground stations, SMA connectors connect essential
equipment such as RF transceiver modules, filters, and amplifiers
to ensure proper communication.
2. Antenna System Connection: The antenna system of the spacecraft
needs to be connected to the internal RF signal processing
equipment. SMA connectors can provide reliable connections to
ensure that the signals received by the antenna can be accurately
transmitted to subsequent processing circuits.
