Brass/SS Right Angle Male RF Connector for CXN3506/MF108A Cable Plug

The K type, also known as the 2.92 type connector, is a widely used series of millimeter wave connectors with a frequency range up to 40 GHz. It is compatible with SMA and 3.5 series products for interchangeability and features an air interface. This connector boasts a compact size, lightweight design, high-frequency operation, and reliable connections.

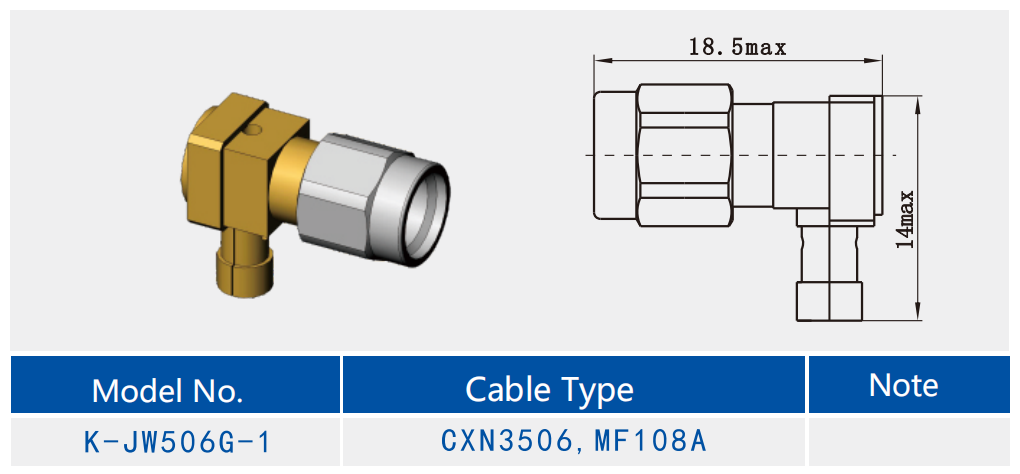

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Other 2.92mm Male Female RF Connector

2.

3.

4.

Features:

1. Compact Size: Compared to other types of RF connectors, such as 3.5mm/SMA connectors, the 2.92mm connector is smaller and more compact. Its miniaturized design makes it ideal for use in space-constrained applications, like portable test equipment and high-density circuit boards.

2. Good Compatibility: The design of the 2.92mm connector takes into account compatibility with SMA and 3.5mm connectors. While there are some differences between them, they can be interconnected under certain circumstances, providing engineers with greater flexibility.

Application:

1. Test and Measurement Equipment: For instruments like network analyzers, spectrum analyzers, and signal generators, the 2.92mm connector facilitates connections between test ports and devices under test. Its precision and stability enhance the accuracy of measurement results.

2. Medical Devices: In certain advanced medical equipment, such as magnetic resonance imaging (MRI) and ultrasound devices, the 2.92mm connector is employed to link RF coils, sensors, and electronic devices. Its superior performance guarantees the stability and reliability of these medical devices.

3. Scientific Research: In physics, chemistry, and materials science research experiments, the 2.92mm connector connects experimental apparatus and chambers. Its high precision and dependability assist researchers in obtaining accurate experimental data.

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!

Product Category:

1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub,MDM)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. ODM Products

Why Choose Us:

√ 22+ years experience on RF & Microwave Components
√ Qualified components supplier of more than 400 customers
√ Rich cooperation experience with national high tech projects
√ High reliable and commercial grade components for choice
√ Strict quality control under all grade standards in the industry
√ Factory area 75,000 sq.m with 1,000+ experienced staff
√ 500+ national patents with 16 production lines
√ Annual output value above US$300 million
√ 50+ series products with 100,000 types
√ Production Line Capacity: 30,000,000 PCS Per Year
√ Cleaning Workshop: Class 100,000
√ Short delivery and competitive price
√ Custom-made (ODM) orders are welcomed
√ Best-in class products
√ Excellent after-sales service
