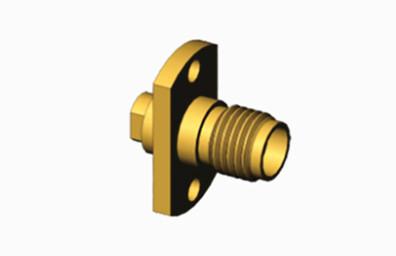

Brass Waterproof Female Flange Mount RF Coaxial Connector for Cable
The 2.92 connectors, commonly referred to as the "K type," are essential in millimeter wave technology due to their capability to support frequencies up to 40 GHz. These adapters not only allow for easy interchange with SMA and 3.5 series counterparts but also feature an air dielectric system. They stand out for their streamlined design, lightweight nature, exceptional performance at high frequencies, and ensure reliable connections.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
Impedance | 50 Ω |
Frequency Range | DC - 40GHz |
Voltage Rating | 250 VRMS (Max. Sea Level) |
Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
Voltage Standing Wave Ratio VSWR | ≤ 1.05 + 0.005f |
Contact Resistance | Center Conductor ≤ 3.0 mΩ |
Outer Conductor ≤ 2.0 mΩ | |
Insulation Resistance | ≥ 5000 MΩ |
Inner Conductor | Male plug: Brass, Gold Plated |
Female Jack: BeCu, Gold Plated | |
Resilient Contact | BeCu, Nickel Plated |
Body / Shell / Housing | Brass, Gold Plated Stainless Steel, Passivated |
Insulator | PEI |
Gasket | Silicone Rubber |
Temperature | -55℃ ~ +125℃ |
Durability | 500 Cycles |
Torque | 0.79 ~ 1.13 N.m |
Features:
1. Size and Weight
Compact Size: With an outer conductor diameter of only 2.92mm, the
K-type connector’s design ensures high performance in a
significantly smaller size compared to many other types of
connectors.
Lightweight: The small size results in a lightweight component,
particularly useful in applications where reducing equipment burden
is essential.
2. Mechanical and Electrical Performance
Excellent Electrical Performance: K-type connectors leverage the
advantages of air transmission lines, featuring low VSWR (Voltage
Standing Wave Ratio) and insertion loss, ensuring stable and
efficient signal transmission.
Other 2.92mm Male Female RF Connector
Part Number | Description |
K-KFD38 | 2.92mm Type K Female RF Coaxial Connector |
K-KFD76G | Stainless steel 2.92mm Type K Female RF Coaxial Connector |
K-KFD8 | 2.92mm Type K Female RF Coaxial Connector |
K-JFD9G | Stainless steel 2.92mm Type K Male RF Coaxial Connector |
1.
2.
3.
4.
Application:
1. Electronic Warfare
Signal jamming and anti-jamming: In electronic warfare, K2.92
connectors are used to transmit jamming signals, where their high
operating frequency and low insertion loss ensure effective
transmission of jamming signals.
Rapid deployment: The lightweight and compact size of the K2.92
connector make it suitable for electronic countermeasure equipment
requiring quick movement and deployment, enhancing system mobility
and response speed.
2. Satellite Communications
High-performance connectivity: In the field of satellite
communications, K2.92 connectors play a key role in transmitting
signals from ground equipment to satellites without loss, ensuring
high-fidelity signal transmission due to their excellent electrical
performance.
Withstanding extreme environments: For satellite equipment
operating in extreme extra-atmospheric conditions, the materials
and design of K2.92 connectors ensure stable performance under
conditions of radiation and extreme temperature variations.
![]() |
