High Performance 110GHz Stainless Steel Male to Female RF Connector
Adapter
The 1.0 series connector is a high-performance millimeter wave
connector designed for use in high-frequency applications. It can
handle frequencies up to 110GHz, making it ideal for millimeter
wave communication and radar systems. This connector features an
air interface threaded connection, ensuring stable and reliable
signal transmission. Its compact size and lightweight design make
it easy to integrate into various systems, while its ultra-high
frequency capabilities allow for efficient signal transfer.
Overall, the 1.0 series connector is a versatile and reliable
choice for high-frequency applications.
Specifiacation:
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~110GHz |
| Dielectrics Voltage-resistance | 250VRMS* |
| Insulation Resistance | ≥5000MΩ |
| VSWR | ≤1.1+0.005f |
| Quality Grade | High Performance Grade |
| Material & Mechanical Characteristics |
| Center conductor | Beryllium Bronze Gold plated |
| Outer conductor | Beryllium Bronze Gold plated; Stainless steel Passivation |
| Insulation Dielectric | PLF |
| Temperature Range | -55 ~ +125℃ |
Feature
1. Design Structure
* Diverse port forms: The 1.0mm RF coaxial connectors are available
in various forms, such as 1.0mm-1.0mm, 1.0mm-1.85mm, etc., offering
a wide selection to meet different testing equipment needs.
* Challenges and innovations in diameter reduction: The design of
the connector involves significant challenges in dimensions,
materials, and machining, such as extremely thin walls and strict
tolerance requirements, reflecting the use of high-precision
manufacturing technology.
2.Precision Manufacturing
High-precision processing: From simulation-optimized design to
precision manufacturing, such as joint simulation optimization
design and precision machining of the waveguide cavity and
transition section, showcasing the significant impact of
manufacturing processes on performance.

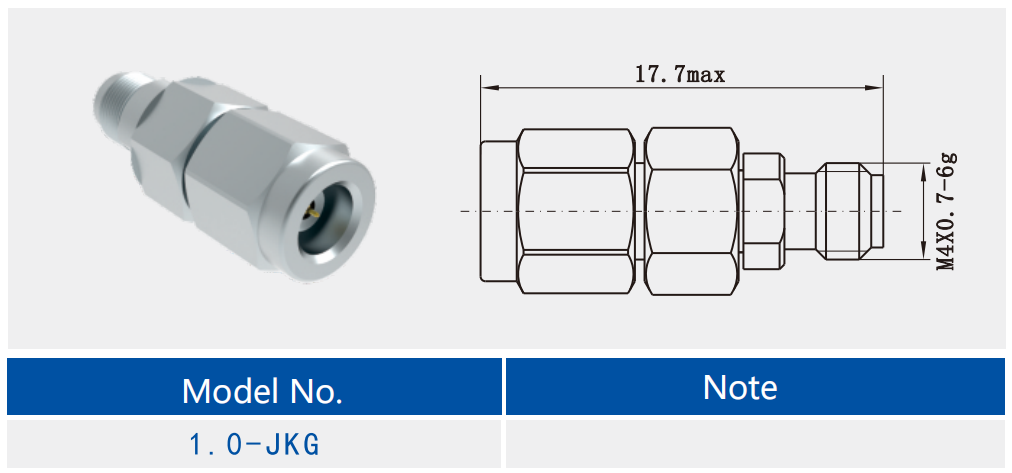

Outline Drawing(mm) and Picture of High Performance 110GHz Stainless Steel Male to Female RF Connector
Adapter
Application:
1. Applications in High-Frequency Link Testing
* Ensuring signal transmission quality: Within high-frequency
links, the role of the connector is crucial. It acts as a bridge
between the device under test (DUT) and the testing instrument,
ensuring high-quality signal transmission in the link .
* Reducing system complexity: Using a 1.0mm RF coaxial connector
can simplify the configuration of testing equipment, reducing
internal cross-connections and uncertainties, thereby optimizing
the testing process and improving efficiency .
2. Microwave Millimeter Wave System Testing
* Supporting a wide range of testing needs: Suitable for testing
needs from DC to 110GHz, covering the most commonly used sizes in
microwave and millimeter wave systems such as 3.5mm and 2.92mm,
providing great flexibility and a wide range of applications .
* Improving testing accuracy and efficiency: With low reflection
and high repeatability, the 1.0mm connector can effectively reduce
measurement errors and ensure the accuracy of test results
Product Cataloge:
| RF Adapter |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Other 1.0mm RF Adapters
1. 1.0mm Female to Female RF Adapter
(Model No.: 1.0-KK)
2. 1.0mm Male to Male RF Adapter
(Model No.: 1.0-JJ)
NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us
with your details.
