Product Description:

The SMP connector is a push-on subminiature RF coaxial connector designed for applications of high-frequency up to 40Ghz . It is known for its compact size and reliable performance, making it ideal for use in various electronic devices, systems, communicatoin, stacom, radar and so on for the connnection between board. It can saving larger mounting space to realize the high density board connection. The male plug have three structures: full detent, limited detent ( also called semi detent, half detent) and smooth bore(including catcher's mitt).

According to the different using applicaiton, the user can choose the male plug with different structures. When user does not need the frequency interstion, they can choose the full detent. The full detent has the maximum connection retention force, the best vibration resistance & impact performance. It is commonly used for cable connection.

When user need many times of insertion, they can use the limited detent (also called semi detent, half detent). The retention force is medium base on the smooth bore structure. It is widely used for PCB assembly and blind mating connections.

When user need more or have to assemble many SMP board to board connectors, they can choose the smooth bore structure. The smooth bore has the same engagement force and disengagement forces and allows axial & radial misalignment. It is often used in blind mating connections.

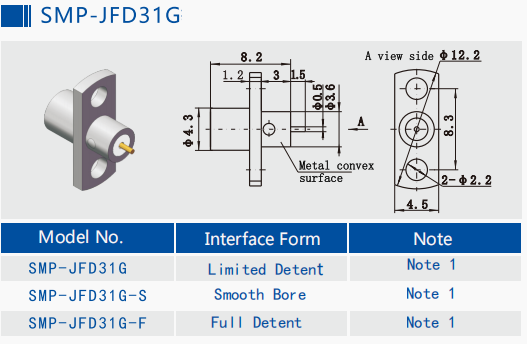

The outline demension of Stainless Steel SMP Male Full Detent Connector (Unit: mm): SMP-JFD30G-F

The Recommend Mount Hole Size:

Note: It is recommended to use M1.6 screws, and the diameter of the screw cap should be less than or equal to 2.6mm.

For the Stainless Steel SMP Male Plug 2 hole Flange Mount Connector: SMP-JFD30G series, we also have the smooth bore type SMP-JFD30G-S.

Other Stainless Steel SMP Male Plug 2 hole flange mount Connector Similar Model: SMP-JFD Series

Note3: Engagement Depth: 2.79mm

Note1: Engagement Depth: 2.79mm

More products, please contact us freely for the products catalog sales3@xa-elite.com.cn

Applications:

Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.

Customization:

Product Customization Services for SMP RF Connector:

Brand Name: ELT

MOQ: 200 pcs

Price: Depending on the quantity

Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.

Packing and Shipping:

Packaging for SMP RF Flange Mount Connector:

1 Piece/ small plastic bag

10 Pieces/ larger plastic bag

100 Pieces/ carton box

The SMP RF Connector comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.

For shipping, the SMP RF Connector is placed in caron. We will supply the tracking No after shipping.
