Product Description:
SMP Connector is a push-on mating type connector with an interface that is
ultra-small, similar in scale to the MMCX connector. This makes it
highly suitable for high-density blind mating, especially for
applications involving printed circuit boards, chassis, and
cabinets. It is generally used in pairs,our solution for board to
board PCB connect such as full detent/limited detent connectors+ In series adapters +smooth
bore connectors.
Based on different connection retention forces, SMP connectors are
divided into three interface types: smooth bore, limited detent,
and full detent, each catering to different application needs:
1) Smooth Bore Interface: This type offers the least connection retention force, allowing
for axial and radial misalignment. It is commonly used in
blind-mate connections or non-precision measurements and has the
longest lifespan.
2) Full Detent Interface: This type provides the best connection retention force and the
best resistance to vibration and shock. Due to its difficulty to
disconnect once connected, despite its high stability, it
significantly impacts product lifespan and convenience, with a
lifespan of only around 500 cycles. It is often used for cable
connections.
3) Limited Detent Interface: Also known as semi-detent interface, it combines the advantages
of smooth bore and full detent, offering high test stability and a
longer lifespan compared to full detent. It is suitable for
precision measurements.

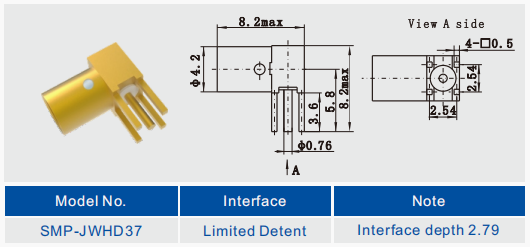

SMP Male Right Angle RA Limited Detent Connector (Unit: mm): SMP-JWHD37
Other SMP Male RA Limited Detent or Smooth Bore Connector Similar Model:
SMP Male RA Limited Detent Connector PCB Soldering Model: SMP-JWFD22 & SMP-JWFD22-S

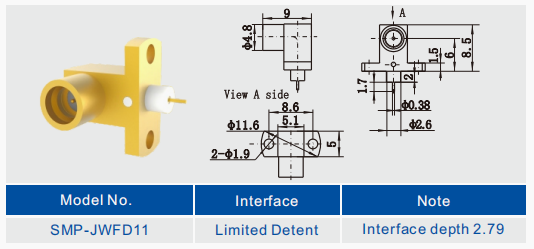

SMP Male RA Limited Detent Connector Flange Mount Model: SMP-JWFD11
More products, please contact us freely for the products catalog
sales3@xa-elite.com.cn
Applications:
Due to the shorter pins or even pinless design of SMP components,
the electrical path is shorter, which helps improve signal
transmission speed and stability, thereby enhancing the overall
performance of electronic products. SMP components also have good
vibration and impact resistance, and a low defect rate in solder
joints. This makes products soldered with SMP exhibit excellent
reliability, enhancing the overall durability of the products.
SMP soldering technology is widely used in communications, consumer
electronics, computers, automotive electronics, industrial control,
and aerospace fields. In these areas, SMP technology plays an
irreplaceable role, driving the miniaturization and
high-performance development of electronic products.
Customization:
Product Customization Services for SMP RF Connector:
Brand Name: ELT
Price: Depending on the quantity
Please send us the drawing and we will let our engineer to arrange
the evaluation or we recommend us the alternative model.
Packing and Shipping:
Product Packaging and Shipping for SMP RF Connector:
The SMP RF Connector comes securely packaged in a small cardboard
box to ensure its protection during shipping. The box is labeled
with the product name and specifications for easy identification.
For shipping, the SMP RF Connector is placed in a padded envelope
or box, depending on the quantity ordered. It is then sealed and
labeled with the shipping address and tracking information for
efficient delivery.
