8.2GHz~12.5GHz WR90 To SMA Female Right Angle Waveguide To Coax Adapter

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP, SSMP, 3.5, K (2.92), 2.4, 1.85, 1.0 and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.

Specification of SMA/BJ100-KF6:

Product Name	WR90 to SMA Female Waveguide to Coaxial Adapters
Model No.	SMA/BJ100-KF6
Coaxial type	SMA Female
Waveguide Size	WR90
Body Style	Right Angle
Frequency Range6	8.2GHz-12.5GHz
SMA Impedance	50 Ohm
VSWR	1.25

Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

Outline Drawing and Pictures of WR90 to SMA Female Waveguide to Coax Adapter SMA/BJ100-KF6:

Related SMA Female Waveguide to Coax Adapters of Elite Electronic.

Model Number	Description	Note
SMA/BJ100-KFE2	WR90 to SMA female right angle adapters	8.2GHz~12.5GHz

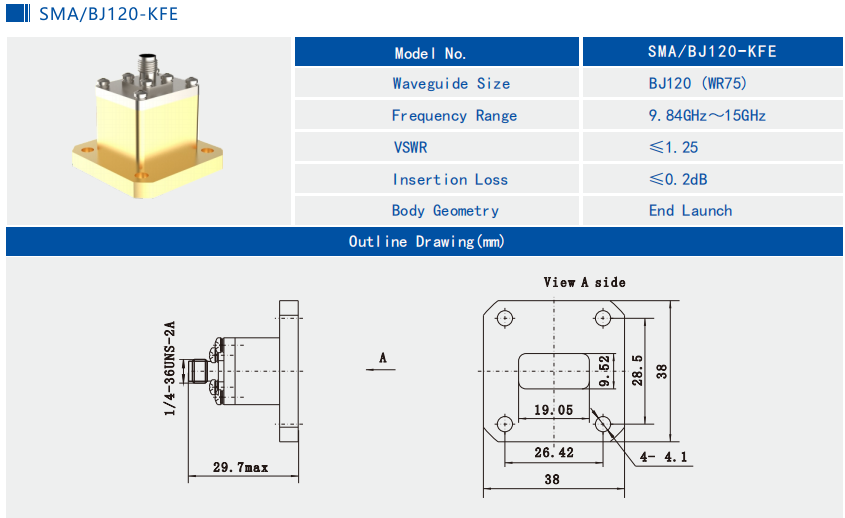

SMA/BJ120-KFE	WR75 to SMA female end launch adapters	9.84GHz~15GHz

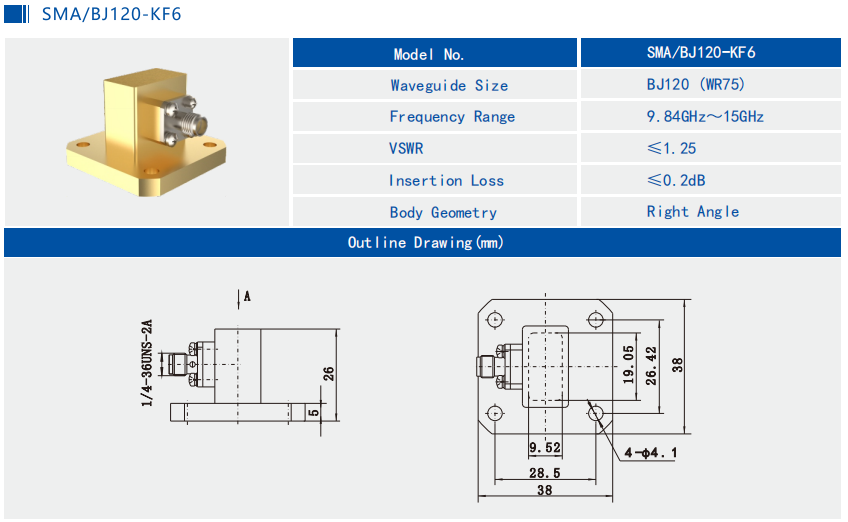

SMA/BJ120-KF6	WR75 to SMA female right angle adapters	9.84GHz~15GHz

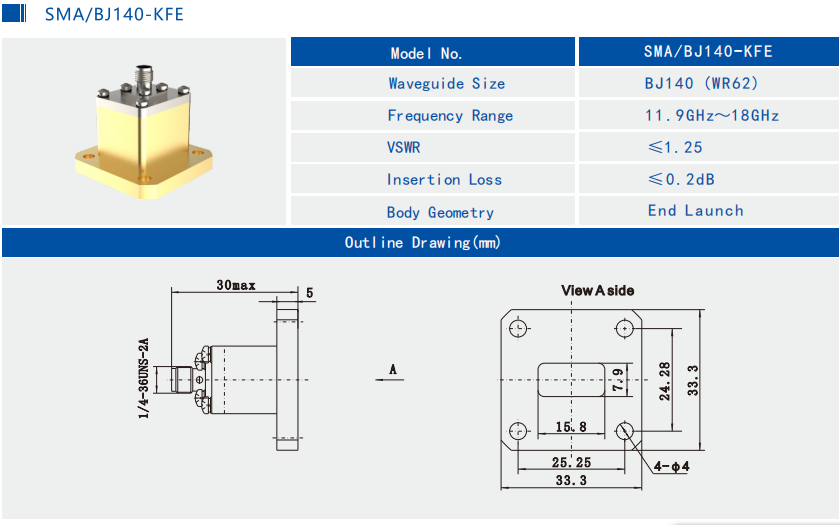

SMA/BJ140-KFE	WR62 to SMA female end launch adapters	11.9GHz~18GHz
SMA/BJ140-KF15	WR62 to SMA female right angle adapters	11.9GHz~18GHz
SMA/BJ180-KFE5	WR51 to SMA female end launch adapters	14.5GHz~22GHz
SMA/BJ180-KF2	WR51 to SMA female right angle adapters	14.5GHz~22GHz

Cross-references of waveguide Standards

Chinese Standards	International Standards	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1
BJ500	WR18	39.2~59.6
BJ620	WR14	49.8~75.8
BJ740	WR12	60.5~91.9
BJ900	WR10	73.8~112

NOTE:
We have over 1,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.
