Product Introduction:
Space Saving or High-frequency CSMP RF Male Connector for PCB Mount
The CSMP RF Connector, featuring a center conductor made of
gold-plated Kovar Alloy, ensures consistent and reliable signal
transmission across a wide frequency range from 0.04GHz to 40GHz.
This makes it ideal for high-frequency applications requiring
precision and stability.
With an insulation resistance of ≥2000MΩ, the CSMP RF Connector minimizes signal loss and maintains signal integrity
even under challenging conditions, contributing to its overall
reliability and performance in critical RF systems.
Designed with a 50Ω impedance rating, the CSMP RF Connector matches
the impedance of connected components, reducing reflections and
signal distortions for optimal signal transfer and maximum RF
system efficiency.
The compact form factor of the CSMP RF Connector, also known as
Supper micro SMP, is smaller than SSMP(mini smp, smpm), making it
perfect for space-saving applications. Its small size supports
high-density installations without compromising performance,
offering a versatile solution for modern RF systems.
In conclusion, the CSMP RF Connector combines superior materials,
precision engineering, and high-performance capabilities, making it
the ideal choice for various RF applications. Whether for
space-constrained environments or high-frequency applications, the
SSMP and CSMP RF Connectors provide reliable connectivity and
exceptional signal integrity.
Features:
- Supper micro SMPMini type SMP Design: Ideal for applications requiring a compact and lightweight
connector solution. Its miniature size is perfect for
space-constrained environments.
- High-Quality Sturcturere: Manufactured in Xi'an, China, with a durable Kovar Alloy outer
conductor with Gold Plated, ensuring excellent conductivity and
reliability.
- Wide Frequency Range: Suitable for high-frequency applications within the 0.04GHz to
40GHz range.
- Hermetic Sealing: Rated at 1.01325 X 10-3 Pa.cm3/s, providing a tight seal to
prevent leakage of gases or liquids, making it ideal for
environments requiring high protection against environmental
factors.
- Superior Insulation: Glass (Green) insulator, offering excellent insulation properties
for reliable performance in challenging conditions.
Technical Parameters:
| Center Conductor | Kovar Alloy, Gold Plated |
| Outer Conductor | Kovar Alloy, Gold Plated |
| Hermeticity | 1.01325 X 10^-3 Pa.cm3/s |
| DWV | 250 V |
| Frequency Range | 0.04GHz~40GHz |
| Impedance | 50Ω |
| Insulation Resistance | ≥2000MΩ |
| Insulator | Glass (Green) |
| Temperature | -55℃~+125℃ |
| Other Name | CSMP, Supper micro SMP Connector, Super-miniature SMP, Ultra - Miniature SMP |
Outline Dimention of CSMP RF Male Connector for PCB Mount :

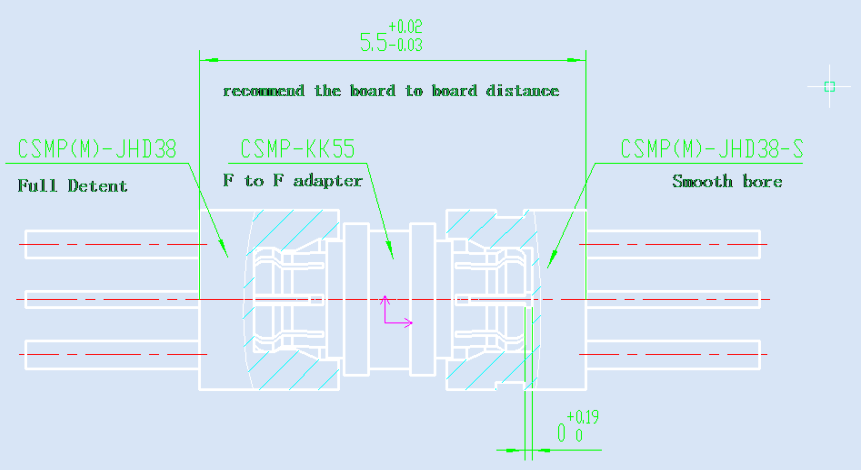

Board to Board Solution:
CSMP Male Connector (Full detent) + CSMP Female Adapter + CSMP Male
Connector (Smooth bore)
Applications:
The Hermetically Sealed CSMP Connector is versatile and can be used in:
- Aerospace
- Telecommunications
- Aviation
- Navigation
- Satelite
- Radar
- Industrial & electronics
Its miniature size, wide frequency range, and hermetic sealing make
it a dependable choice for demanding environments.
Customization:
Product Customization Services for CSMP RF Connector:
Product customization services are available for the minitype SMP,
mini-size SMP, and minisize SMP.
MOQ: 200 pcs
Packing and Shipping:
This CSMP RF Connector is carefully packaged to ensure safe
delivery to your doorstep.
Package: 50pcs/ Plastic bottle
Size of Outer Carton: 21.5*15.5*12cm (0.040 CBM)
Note: The Outer Carton can hold Two Small Carton
