7.5GHz~18GHz WRD750 To SMA Male Right Angle Waveguide To Coax Adapter

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP, SSMP, 3.5, K (2.92), 2.4, 1.85, 1.0 and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.

Specification of SMA/WRD750-JF:

Product Name	WRD750 to SMA Male Waveguide to Coaxial Adapters
Model No.	SMA/WRD750-JF
Coaxial type	SMA male
Waveguide Size	WRD750
Body Style	Right angle
Frequency Range6	7.5GHz-18GHz
SMA Impedance	50 Ohm
VSWR	1.3

Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

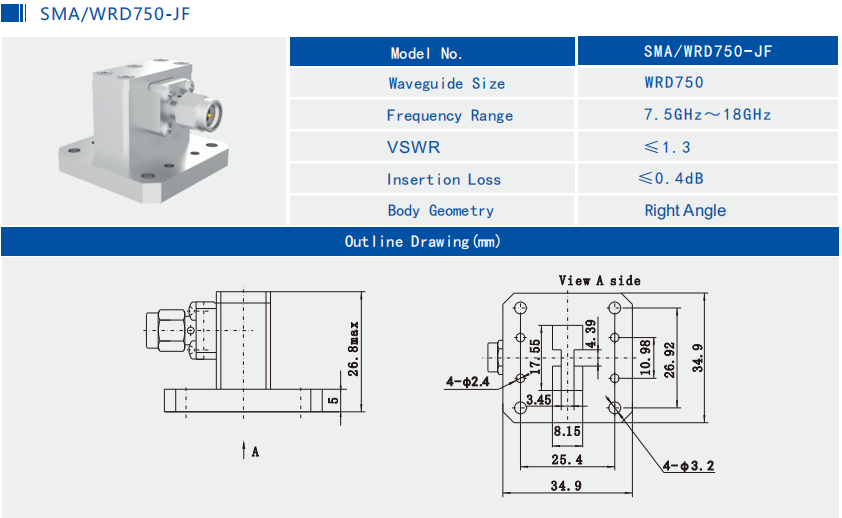

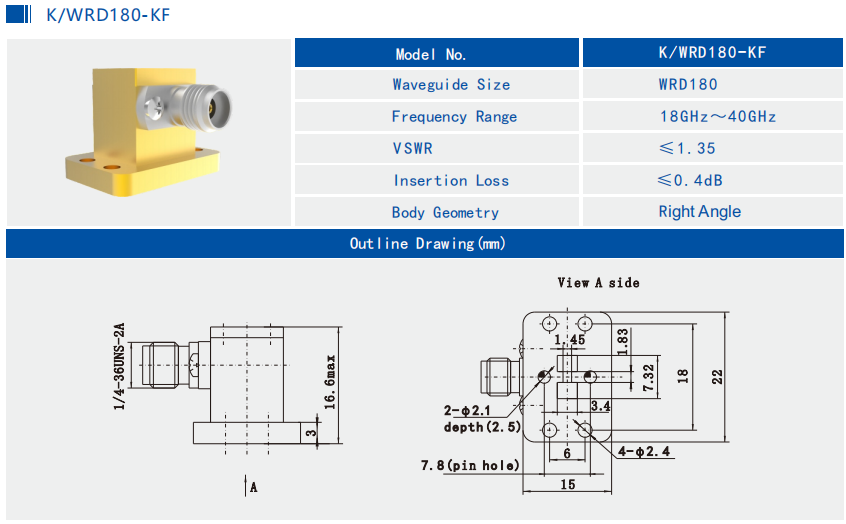

Outline Drawing and Pictures of WRD750 to SMA Male Waveguide to Coax Adapter SMA/WRD750-JF:

Related WRD Waveguide to Coax Adapters of Elite Electronic.

Model Number	Description	Note
N/WRD500-KF1	WRD500 to N Type female end launch adapters	6GHz~18GHz
K/WRD180-KF	WRD180 to K2.92mm female right angle adapters	18GHz~40GHz
SMA/WRD650-JF	WRD650 to SMA male right angle adapters	6GHz~18GHz
Custom Type	Customized sizes are acceptable

Cross-references of waveguide Standards

Chinese Standards	International Standards	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1
BJ500	WR18	39.2~59.6
BJ620	WR14	49.8~75.8
BJ740	WR12	60.5~91.9
BJ900	WR10	73.8~112

NOTE:
We have over 1,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.
