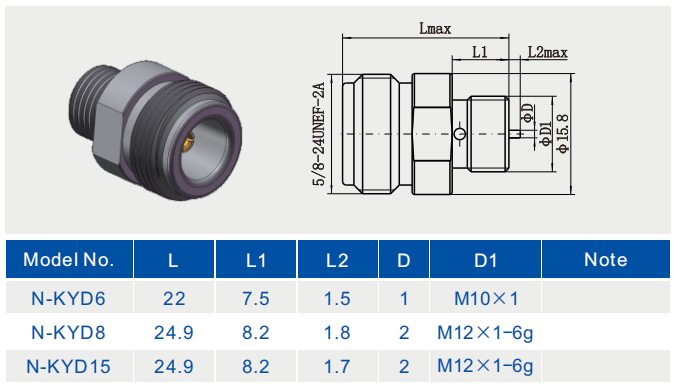

Detailed Drawing

Features:

1. Wide range of adaptability: Compatible with a wide range of RF cables (e.g. semi-rigid cables, flexible cables), can be converted with SMA, BNC, TNC and other connectors via adapters, suitable for microwave equipment, aerospace, radar, test instrumentation and other fields 245.
High power handling: suitable for high power RF applications, such as base stations, transmitters, satellite communications, etc., with power capacity superior to that of small connectors (e.g. BNC)36.
2.Convenient operation: threaded connection facilitates quick plugging and unplugging manually or with tools, and some models support solder-free crimping method4.
3. Potential problems: attention should be paid to impedance matching (50Ω and 75Ω can not be mixed), increased reflection due to wear and tear of insertion and removal, as well as damage caused by misuse (such as over-tightening) 35.

Applications:

1. Network Analyzer/Spectrum Analyzer: Connects the device under test (e.g., antenna, filter) with the instrument to support wide bandwidth (0-18 GHz) testing.
2. Signal Generator/Attenuator: Transmits high precision RF signals in lab or field tests.
Darkroom test: RF link construction for antenna direction map and EMC test.
3. Cable TV network: connecting 75Ω coaxial cable in trunk transmission (e.g. CATV system), supporting analog/digital signal transmission.
4. Broadcast Transmitter: RF output port for FM/UHF transmitter to withstand high power broadcast signals.
Film and television production: connecting camera wireless microphone, video transmission equipment (such as microwave transmission).

Product Cataloge:

NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!
