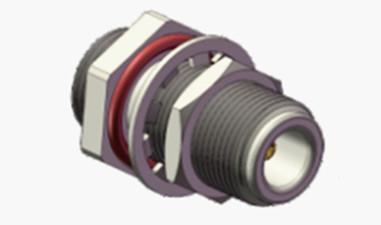

Detailed Drawing

Features:

1. Wide range of adaptability: Compatible with a wide range of RF cables (e.g. semi-rigid cables, flexible cables), can be converted with SMA, BNC, TNC and other connectors via adapters, suitable for microwave equipment, aerospace, radar, test instrumentation and other fields 245.
2. High power handling: suitable for high power RF applications, such as base stations, transmitters, satellite communications, etc., with power capacity superior to that of small connectors (e.g. BNC)36.
3. Convenient operation: threaded connection facilitates quick plugging and unplugging manually or with tools, and some models support solder-free crimping method4.
4. Potential problems: attention should be paid to impedance matching (50Ω and 75Ω can not be mixed), increased reflection due to wear and tear of insertion and removal, as well as damage caused by misuse (such as over-tightening) 35.

Applications:

1. Cable Television Networks: Connects 75Ω coaxial cable in trunked transmissions (e.g. CATV systems) to support analog/digital signal transmission.
2. Broadcast Transmitter: RF output port for FM/UHF transmitter to withstand high power broadcast signals.
3. Film and television production: connecting the camera wireless microphone, video transmission equipment (such as microwave transmission).
4. Microwave equipment: Transmit high power microwave signals in microwave ovens, RF heating equipment.
5. Radar detectors: RF front-end connection for automobile collision avoidance radar, weather radar.
Particle accelerators/Nuclear Magnetic Resonance: Transmission of high-frequency control signals or RF energy in scientific research equipment.

Product Cataloge:

NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
