Nickel Plated N Bulkhead Female Flange Mount RF Coaxial Connector

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	N-KYFD1
Certification :	ISO-9001-2015
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	1,000,000 Pieces Per Month
Delivery Time :	Within 5-7 workdays(for stocks)

Add to Cart

Product Details
Company Profile

Nickel Plated N Bulkhead Female Flange Mount RF Coaxial Connector

N-type connectors employ screw-thread engagement mechanisms, delivering exceptional vibration resistance and optimized electrical performance. While the standard frequency range reaches up to 11 GHz, our advanced models extend operation capabilities to 18 GHz. These connectors maintain compatibility with diverse RF cable types and are integral components across avionics, aerospace systems, radar networks, microwave applications, digital communication infrastructure, and precision measurement equipment.

Our engineering team specializes in crafting tailored N-type solutions to match precise specifications. Whether you require straight or right-angle configurations, panel-mount, chassis-mount, or flange-mount designs, we provide fully customized adapters and connectors to meet your exact application needs.

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~11GHz(Max.18GHz)
Rated Voltage	1000VRMS*(Max.Sea Level)
Dielectrics Voltage-resistance	1500VRMS*(Max.Sea Level)
Insulation Resistance	≥5000MΩ
Center Resistance	Outer conductor	≤0.5mΩ
	Center conductor	≤1.5mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Brass, Gold plated
	Female	Phosphor Bronze, Gold plated
Resilient Contact	Phosphor Bronze	Nickel Plated Passivated
Shell / Housing	Brass Stainless steel	Gold plated Passivation
Cable Clamp	Brass	Nickel Plated
Insulator	PTFE
Gasket	Silicone Rubber
Durability	500 Cycles

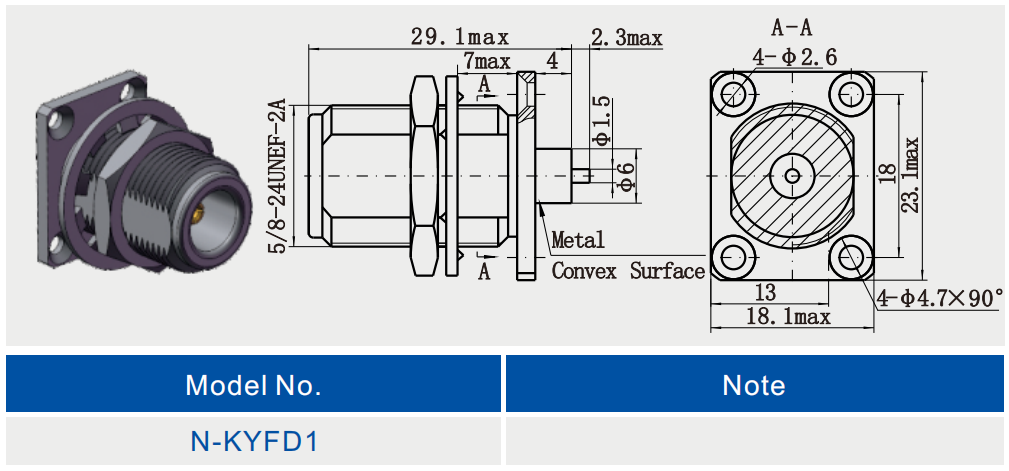

Detailed Drawing

Nickel Plated N Bulkhead Female Flange Mount RF Coaxial Connector

Features:

1. Threaded coupling design: Reliable connection through rotary tightening, providing good mechanical stability and vibration resistance, suitable for vibration environments (e.g., aerospace, automotive equipment).
2. Multi-mounting: Supports Straight, Right Angle, Flange Mount or Bulkhead Mount configurations to meet different space requirements.

Applications:

1. Broadcasting and Radio and Television
Broadcast TV Transmitter: Used to connect the transmitter with the antenna to transmit high frequency RF signals (e.g., UHF/VHF bands) to ensure stable signal coverage34.
Cable TV networks: In cable distribution systems, N-type connectors are used to connect coaxial cables with equipment to support analog/digital signal transmission3.
2. Test and Measurement Instruments
Vector Network Analyzer/Spectrum Analyzer: Used as a standard interface to connect the device under test with the instrument to support high-precision signal testing (e.g., DC to 18 GHz)14 .
Signal generators/oscilloscopes: for RF signal input/output to ensure low reflection and low loss1

Product Cataloge:

RF Adapter

RF Cable Assemblies

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

Waveguide to Coaxial Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

TNC RF Connector

N Type RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

Packaging & Delivery:

* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
