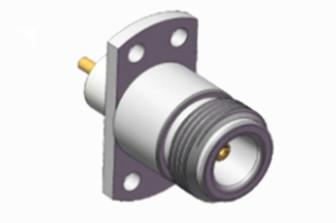

Stainless Steel Housing N Series Female RF Coaxial Connector
N type connectors are coaxial connectors with threaded coupling,
recognized for their excellent anti-vibration capabilities and
electrical performance. They typically support frequencies up to 11
GHz, but our products can operate up to 18 GHz. These connectors
are suitable for various types of RF cables and are widely used in
aviation, aerospace, radar, microwave, digital communications, and
test and measurement instruments. We offer customization services
for different types of N-type connectors and adapters to meet
specific customer requirements, including straight or right-angle
configurations, as well as flange mount or bulkhead mount options.
Specification
Note:The specific data of the model are based on the data in the
product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~11GHz(Max.18GHz) |
| Rated Voltage | 1000VRMS*(Max.Sea Level) |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Brass, Nickel Plated |
| Female | Phosphor Bronze, Nickel Plated |
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel | Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Durability | 500 Cycles |
Detailed Drawing
Features:
1. Wide bandwidth transmission: supports a wide range of signal
frequencies, ranging from 0 to 11GHz, and the enhanced type can
even cover up to 18GHz, which can meet the needs of a variety of RF
applications.
2. Low Loss: Adopting high quality materials and precise
manufacturing process, the loss generated during signal
transmission is extremely low, which helps to improve the
efficiency and quality of signal transmission.
3. High shielding: The housing is usually made of metal material
with good electromagnetic shielding performance, which can
effectively prevent the influence of external electromagnetic
interference on signal transmission.
Applications:
1. Good environmental adaptability: After special treatment and
testing, N type microstrip connectors are able to work stably under
harsh environmental conditions (such as high temperature, low
temperature, humidity, etc.) and have a long service life, which
makes them suitable for use outdoors and in a variety of complex
environments.
2. Versatile compatibility: The N type microstrip connector is
compatible with many types of cables, including semi-rigid cables
and flexible cables, etc., providing a wider range of
applicability. It also complies with international standards (e.g.,
IEC and IEEE) for easy interchangeability and integration with
other equipment.
3. Convenient Installation and Maintenance: The threaded connection
method makes the N type microstrip connector easy and quick to
install, eliminating the need for complicated soldering processes.
In addition, their durability and reliability reduce maintenance
costs and frequency, improving the overall efficiency of the
system.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us
with your details.
