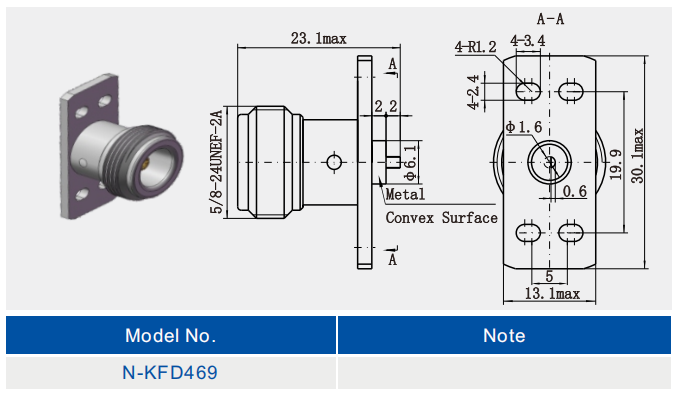

Detailed Drawing

Outline Drawing:

Features:

1. Low Loss: Adopting high quality materials and precise manufacturing process, the loss generated during signal transmission is extremely low, which helps to improve the efficiency and quality of signal transmission.

2. High shielding: the shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.

Applications:

1. High-performance electrical characteristics: N-type microstrip connectors feature low loss and high shielding effectiveness to ensure signal integrity and accuracy during transmission. This allows it to excel in high-frequency applications, such as wireless communications, satellite communications and other fields.

2. Wide frequency range adaptability: N-type microstrip connectors support wide bandwidth transmission from low to high frequencies, and some of the enhanced types of N-type connectors can even reach 18GHz or higher frequency range to meet the needs of different application scenarios.

3. Reliable Mechanical Connection: With the threaded connection, N type microstrip connectors can maintain a stable connection under vibration and shock environments, which reduces the risk of loosening connection or signal interruption caused by environmental factors.

Product Cataloge:

NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
