4-hole Flange N Series Female RF Coaxial for Communication
Application
N type connectors belong to threaded coupling coaxial connectors,
boasting excellent anti-vibration capability and electrical
characteristics. Their typical frequency range is up to 11GHz, but
we can also offer products with an extended frequency range of up
to 18GHz. These connectors are compatible with various types of RF
cables and are widely used in fields such as aviation, aerospace,
radar, microwave and digital communications, as well as test and
measurement instruments. We provide customized services for
different types of N connectors and adapters according to
customers' specific requirements, including straight or right angle
types, flange mount or bulkhead mount options.
Specification
Note:The specific data of the model are based on the data in the
product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~11GHz(Max.18GHz) |
| Rated Voltage | 1000VRMS*(Max.Sea Level) |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ |
| VSWR | ≤1.3 |
| Material & Mechanical Characteristics |
| Center Conductor | Male | Brass, Nickel Plated |
| Female | Phosphor Bronze, Nickel Plated |
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel | Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Durability | 500 Cycles |

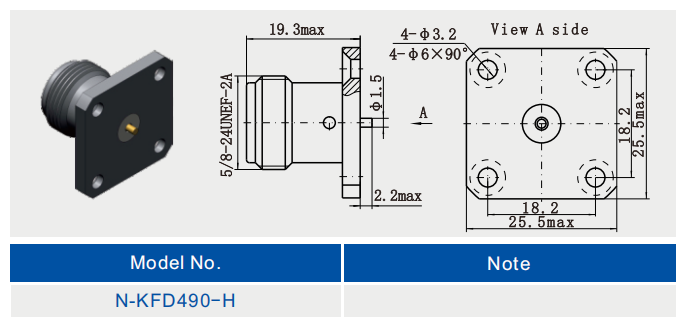

Detailed Drawing
Features:
1. Threaded connection: This is the most prominent external feature
of N-type connectors, which are threaded to achieve a solid and
reliable electrical connection by rotating the threads on the plug
and socket. This type of connection is not only strong, but also
easy to handle and can be quickly plugged and unplugged, which
makes it suitable for scenarios that require frequent connections
and disconnections.
2. Various shapes and termination methods: There are various
shapes, such as straight or right-angle type, 4-hole flange type,
press-in type, bulkhead type, 2-hole panel type, 4-hole panel type,
or no-loading type, and so on. Termination methods are also more
abundant, including snap-in/weld, snap-in/weld (static contact),
crimp/weld, field replaceable type, welded type or weld/weld.
Applications:
1. Cable TV system: In cable TV network, N connectors are commonly
used to connect coaxial cables and various equipments, such as TV
set-top boxes, front-end amplifiers, branch distributors, etc. 75Ω
N connectors are commonly used in cable TV system, which can ensure
high quality transmission of video signals, and reduce signal
distortion and interference.
2. Radio and television transmitter: In the transmitter equipment
of radio and television transmitter, N-type connector is used to
connect the transmitter, antenna tuner, feeder and other components
to transmit RF signals to the transmitter antenna to realize the
transmission of radio and television programs. Its good electrical
performance and mechanical stability can ensure the reliable
operation of the transmitting equipment and the stable transmission
of signals.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us
with your details.
