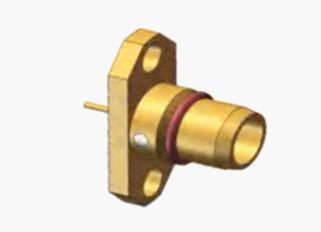

    BMA Male Straight 2-hole Flange Brass RF Coaxial Connector for PCB Mount

    BMA Male Straight 2-hole Flange Brass RF Coaxial Connector for PCB Mount


    The BMA series connector is a blind mate connector developed and manufactured in accordance with the IEC1169-33 standard. It features a novel spring plate structure that ensures reliable contact and superior electrical performance. This connector offers the advantage of being able to float both axially and radially, with minimal space between each connection point and a lightweight design, making it suitable for use in chassis cabinet blind mate applications. The BMA series is widely utilized in module connections for chassis cabinets. These connectors are interchangeable with international counterparts, allowing for quick engagement and disengagement, and are commonly used to connect coaxial cables in radio equipment and instruments.




    Specification
    Note:The specific data of the model are based on the data in the product specification sheet.

    Electrical Characteristics
    Impedance50Ohm
    Frequency RangeDC~18GHz
    Rated Voltage250 VRMS (Maximum sea-level)
    Dielectrics Voltage-resistance1000 VRMS (Maximum sea-level)
    Insulation Resistance≥5000MOhm
    Contact ResistanceOuter conductor≤2.0mOhm
    Center conductor≤0.5mOhm
    VSMR≤1.3

    Product Detail

    Material & Mechanical Characteristics
    Center ConductorMale/PlugBrassGold plated
    Female/SocketSn-P bronzeGold plated
    Resilience ContactBeryllium bronzeNickel Plated
    Shell / HousingBrass, stainless steelNickel Plated
    InsulatorsPTFE
    Sealing RingSilicone Rubber
    Durability500 cycles

    RoHS CompliantYes
    Mating Cycles500Cycles
    Contact Retention10N min
    Cable Retention100N min
    Mating Force0.6N max
    Un-Coupling Force0.6 N max


    Environmental Specification:

    Operating Temperature-55 to +155Deg C
    IP Rating ( Mated )IP64



    Features:

    1. Good mechanical properties: small size and light weight, easy to use in equipment with limited space. Adopting the new design of blind mating, it can realize fast and safe plugging and unplugging, which is suitable for applications with frequent connection and disconnection, such as telecommunication infrastructures, radar systems, etc., and can effectively improve the efficiency of the use of the equipment and the convenience of maintenance.

    2. Reasonable structural design: Structurally it is the push-in form of SMA series, and the interface interface adopts air interface, this design helps to reduce the size and weight of the connector, while maintaining good electrical performance.

    3. High reliability: with a high mechanical life, generally up to 500 times or more, can ensure stability and reliability in the long-term use of the process.

    4.Wide range of application: suitable for a variety of microwave circuit connections, especially for chassis, cabinets, blind insertion and closure, conducive to the modularity of the radar and other complete systems, has been widely used at home and abroad.


    Application:

    1. Aerospace: in aircraft, satellites and other aerospace equipment, used to connect a variety of electronic equipment and communication systems, such as satellite communication antennas, airborne radar, electronic warfare systems, etc. The miniaturization and lightweight characteristics of BMA connectors are conducive to reducing the weight of aerospace equipment, and improving the portability and mobility of the equipment; at the same time, their high reliability and seismicity, to adapt to the harsh conditions of aerospace environment.

    2. Test and Measurement Instruments: In RF test instruments, such as spectrum analyzers, network analyzers, signal generators, etc., they are used to connect the RF signal transmission between the equipment under test and the test instruments. Its precise electrical performance and stable connection characteristics can ensure the accuracy and reliability of test results and help improve the efficiency and precision of test and measurement.


    NOTE:
    We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
