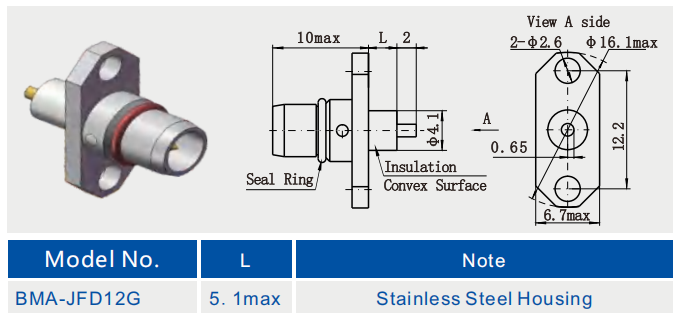

BMA Male Stainless Steel Housing 2-hole Flange RF Coaxial Connector
The BMA series connectors comply with the IEC1169-33 standard and
are designed as blind mate connectors. They incorporate an
innovative spring sheet design that ensures dependable contact and
excellent mechanical and electrical performance. These connectors
provide the advantages of both axial and radial floating
capabilities, occupy minimal space per connector, and are
lightweight. They are suitable for use in blind mate applications
with chassis and cabinets, making them commonly used in module
connections for chassis and cabinet assembly.
Specification
Note:The specific data of the model are based on the data in the
product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ohm |
| Frequency Range | DC~4GHz |
| Rated Voltage | 500 VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 1500 VRMS (Maximum sea-level) |
| Insulation Resistance | ≥5000MOhm |
| Contact Resistance | Outer conductor | ≤2.0mOhm |
| Center conductor | ≤0.5mOhm |
| VSMR | ≤1.3 |
Product Detail:
| Material & Mechanical Characteristics |
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated |
| Resilience Contact | Beryllium bronze | Nickel Plated |
| Shell / Housing | Brass,stainless steel | Nickel Plated |
| Insulators | PTFE |
| Sealing Ring | Silicone Rubber |
| Durability | 500 cycles |
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.58N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -45 to +155Deg C |
| IP Rating ( Mated ) | IP67 |
Features:
1. Reasonable structural design: structurally it is the push-in
form of SMA series, and the interface interface adopts air
interface, this design helps to reduce the volume and weight of the
connector, while maintaining good electrical performance.
2. High reliability: with a high mechanical life, generally up to
500 times or more, can ensure stability and reliability in the
long-term use of the process.
3. Wide range of application: suitable for a variety of microwave
circuit connections, especially for chassis, cabinets, blind
insertion and closure, conducive to the modularity of the radar and
other complete systems, has been widely used at home and abroad.
Application:
1. Internet of Things (IoT) devices: With the development of IoT, a
large number of sensors and wireless communication modules need to
be connected to the network.BMA microstrip RF coaxial connectors
can be used to connect the RF module in IoT devices with the
motherboard to realize wireless communication and data transmission
between the devices, which provides a reliable connectivity
solution for IoT applications.
2 Medical equipment: BMA connectors are also used in medical
imaging equipment, microwave therapy instruments and other medical
equipment. For example, in Magnetic Resonance Imaging (MRI)
equipment, it is used to transmit RF signals to excite and receive
magnetic resonance signals from the human body, thus realizing
high-quality medical images. Its miniaturization and
high-performance features contribute to the miniaturization and
portable design of medical equipment, which improves the ease of
use and diagnostic effect of medical equipment.
NOTE:
We have over 10,000 types of interconnect
products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP
ect.),), if the connector you are using is not found, please
contact us with your details.
