High-Performance TNC Female Microstrip RF Connector with Right Angle Design

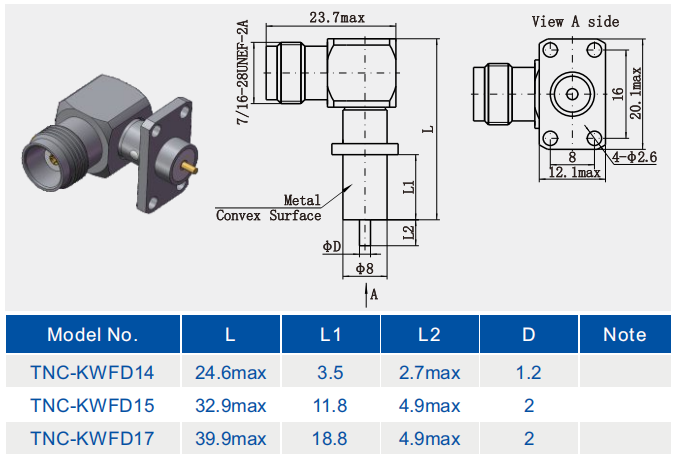

Mechanical Specification

Environmental Specification:

Features:
1. Wide operating bandwidth:
TNC connectors are capable of withstanding frequencies up to 11GHz and can even be applied up to higher GHz in some precision designs, making them excellent for high frequency applications.
2. Reliable connection:
TNC connectors use a threaded connection, by rotating the connector shell to realize the connection between the cable and the device, this connection is usually more robust than the snap type connection, so the TNC connector can work in a more harsh environment and not easy to loosen, to ensure the stability of the signal transmission.
Application:
1. Wireless communication system:
In wireless communication base stations, TNC connectors are used to connect RF coaxial cables and base station equipment to ensure efficient signal transmission. Its stable threaded connection and wide bandwidth performance enable it to maintain excellent performance in complex communication environments.
In antenna systems, TNC connectors are used as the connection interface between the antenna and the RF equipment to ensure that the signals received and transmitted by the antenna can be accurately transmitted to the RF equipment.
2. Agricultural industry:
TNC connector cable assemblies and their organization and protection features ensure the proper functioning of heavy machinery, such as tractors and mid-tillers, and play an important role in the agricultural sector.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!

Product Category:

1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub,MDM)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. ODM Products

Why Choose Us:

√ 22+ years experience on RF & Microwave Components
√ Qualified components supplier of more than 400 customers
√ Rich cooperation experience with national high tech projects
√ High reliable and commercial grade components for choice
√ Strict quality control under all grade standards in the industry
√ Factory area 75,000 sq.m with 1,000+ experienced staff
√ 500+ national patents with 16 production lines
√ Annual output value above US$300 million
√ 50+ series products with 100,000 types
√ Production Line Capacity: 30,000,000 PCS Per Year
√ Cleaning Workshop: Class 100,000
√ Short delivery and competitive price
√ Custom-made (ODM) orders are welcomed
√ Best-in class products
√ Excellent after-sales service
