Nickel Plated TNC Female to Female 4-hole Flange RF Coaxial Connector

Mechanical Specification

Environmental Specification:

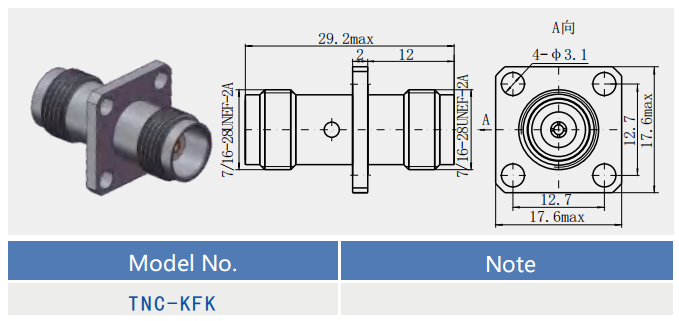

Detailed Drawing

Features:

For Electrical Performance

1. Wide frequency range: capable of withstanding frequencies up to 11GHz, and some precision designs can even be applied up to 18GHz, which can meet the needs of a variety of high-frequency application scenarios.
2. Good impedance matching: A common impedance of 50Ω is essential to ensure the stability and performance of signal transmission, which reduces signal reflection and distortion and ensures the accuracy of signal transmission.
3. Low Insertion Loss: Low insertion loss means that signals passing through the connector will only introduce a small amount of signal attenuation, which has a low impact on the accuracy and precision of signal transmission, especially in high-frequency applications.

Application:

Communication field

1. Wireless communication base station: In mobile communication base stations, TNC adapters are used to connect different RF components, such as antennas, filters, power amplifiers and so on. Due to its good electrical performance and mechanical durability, it can ensure stable transmission of high-frequency signals, reduce signal loss and interference, and improve the communication quality and coverage of the base station. For example, the antenna interface of the base station is adapted to the feeder cable to ensure effective signal transmission and reception.
2. Microwave communication system: In microwave communication, TNC adapters can be used to connect different transmission components such as waveguide and coaxial cable to realize the transmission and distribution of microwave signals. Its high-precision threaded connection structure can ensure good contact under high frequency, reduce VSWR and improve the transmission efficiency of microwave signals, which is commonly used in microwave relay stations, satellite communication ground stations and other equipment.
3. Cable TV system: Cable TV network signal distributor, branch and other equipment, often use the TNC adapter to connect coaxial cable, the TV signal distribution to the various user terminals.TNC adapter waterproof, dustproof performance and stable electrical performance, can adapt to the outdoor and indoor and other complex environmental conditions, to ensure that the high quality of cable TV signal transmission.

NOTE:
We have over 10,000 types of TNC Connector, if the connector you are using is not found, please contact us with your details.
