High Performance TNC Male to Female RF Adapter Coaxial Connector Nickel Plated

Mechanical Specification

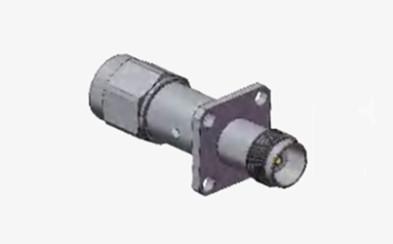

Detailed Drawing

Features:

1. High return loss: usually with high return loss (reflection loss), effectively prevent signal reflection, further reduce signal interference and distortion, improve signal transmission quality.
2. Good Insulation Impedance and Voltage Withstanding Capability: It has high insulation impedance and voltage withstanding capability, usually able to withstand 1500V electrical withstand voltage, suitable for stable operation under high voltage environment.
3. Low VSWR: Usually with low VSWR, to ensure the stability and consistency of signal transmission inside the connector.

Application:

Test and Measurement Field

1. RF test equipment: TNC adapters are commonly used as connection components in the test and measurement of RF signals. For example, connecting signal generators, spectrum analyzers and other test equipment with the device under test or antenna, in order to accurately measure the parameters of RF signals, such as frequency, power, VSWR, etc. The low-loss and high-return-loss characteristics of TNC adapters can ensure the accuracy and reliability of the test results.
2. Network analyzer: Network analyzer is used to measure the scattering parameters and impedance characteristics of RF network, etc. TNC adapter can be used to connect the network analyzer with RF circuit or device to be tested, which is convenient to measure and analyze various RF parameters. Its good intermatchability and repeatability make the testing process more convenient and efficient.

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
