Solder Attachment Pin Terminal Connector SMP Male Hermetically Sealed Connector

Solder Attachment Pin Terminal Connector SMP Male Hermetically Sealed Connector

SMP RF Connector Introduction

The SMP interface is a subminiature interface in the same scale as MMCX connectors but offers a freqquency range of DC to 40 Ghz. The SMP interconnect series relies on floating female-to-female adapters (commonly called bullets) to achieve stacking of boards equipped with SMP male PCB connectors. This durable structure and ability to withstand radial and axial misalignment allows blind interconnection solutions. It is commonly used in miniaturized high frequency coaxial modules.

Features and Benefits

Frequency Range: DC - 40 GHz
Industry standard per MIL-STD-348
Gold plated & passivated stainless steel
Push-on or snap coupling
Male and Female, Straight and Right Angle choice
Normal type and hermetic seals Flange mount & Thread-In Mount choice
The plug has three interface form-full detent, limited detent and smooth bore(including with braking).
Custom connectors available

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Insulation Resistance	≥2000MΩ
Dielectrics Voltage-resistance	500VRMS*
Center Resistance	Outer conductor	Normal≤2.5mΩ, Sealing≤4mΩ
	Center conductor	Normal≤6mΩ, Sealing≤26mΩ
VSWR	≤1.3

Material & Mechanical Characteristics
Center Conductor	Male	Sn-P Bronze,gold plated
Center Conductor	Female	Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze	Gold plated
Shell and other Metal Parts	Brass Stainless steel	Gold plated Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	1.01325×10-3Pa·cm3/s

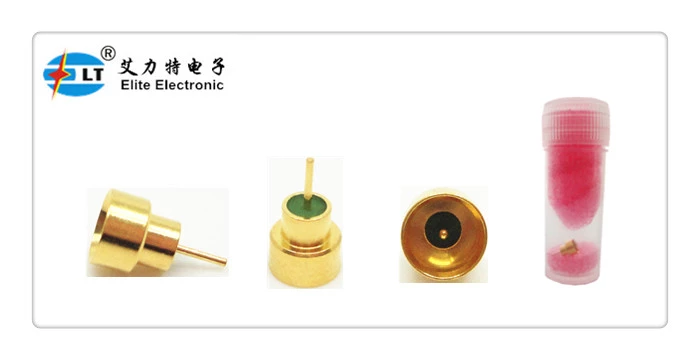

Detailed Drawing of

Solder Attachment Pin Terminal Connector SMP Male Hermetically Sealed Connector:

Applications

Antennas
Aerospace
Board-to-board interconnect
Telecommunications
Military
Instrumentation

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
