Male Female SMA RF Connector For RG58 RG303 RG405 RG223 LMR400

SMA RF Cable Male Female Connector for RG58 RG303 RG405 RG223 LMR400

1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 hole panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).

Features:

Sub-miniature coaxial connectors
Screw-on coupling
Light weight, compact and vibration proof design
Available in nickel or gold plating , in a wide variety of orientations and PCB terminations
Broad range with male, female and adapters variants
Frequency range up to 18 GHz
Intermateable with SMA2.9
Excellent return loss

Specifiacation:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.2(DC-6GHz)
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

SMA RF Cable Connector for Soft Cable

Soft cable type: Cable RG142/RG178/LMR200/LMR300/RG223/RG316

SMA connector type: Male/ female, straight/right angle, 2 /4-hole flange mount

List of SMA RF Cable Connector for Soft Cable:

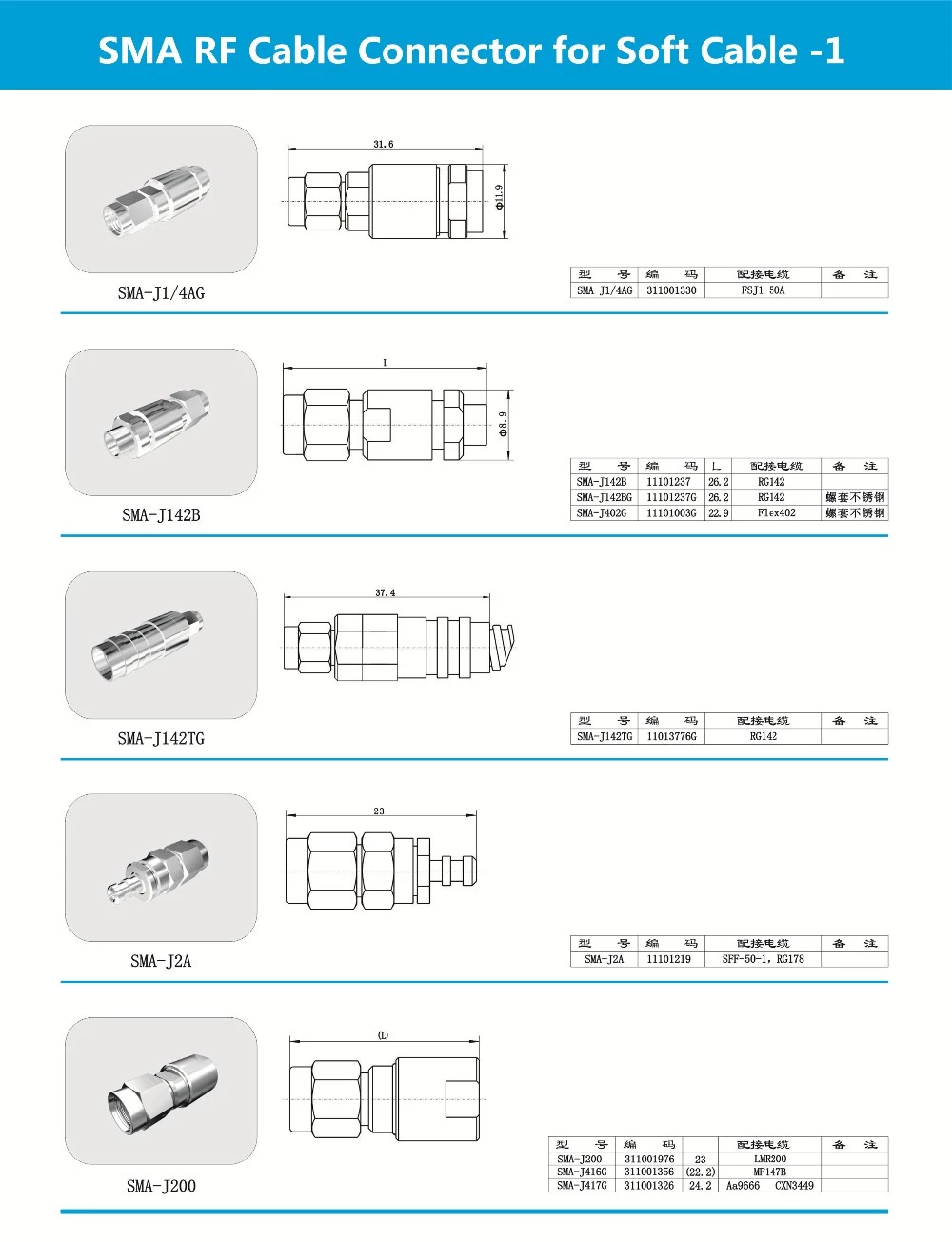

1.SMA-J1/4AG, SMA male connector for FSJ1-50A cable with length 31.6mm

2.SMA-J142B, SMA male connector for RG142 cable with length 26.2mm

3.SMA-J142TG, Stainless steel SMA male SMT connector for RG142 cable

4.SMA-J2A, SMA male connector for RG178 cable with length 23mm

5.SMA-J200, SMA male connector for LMR200 cable with length 23mm

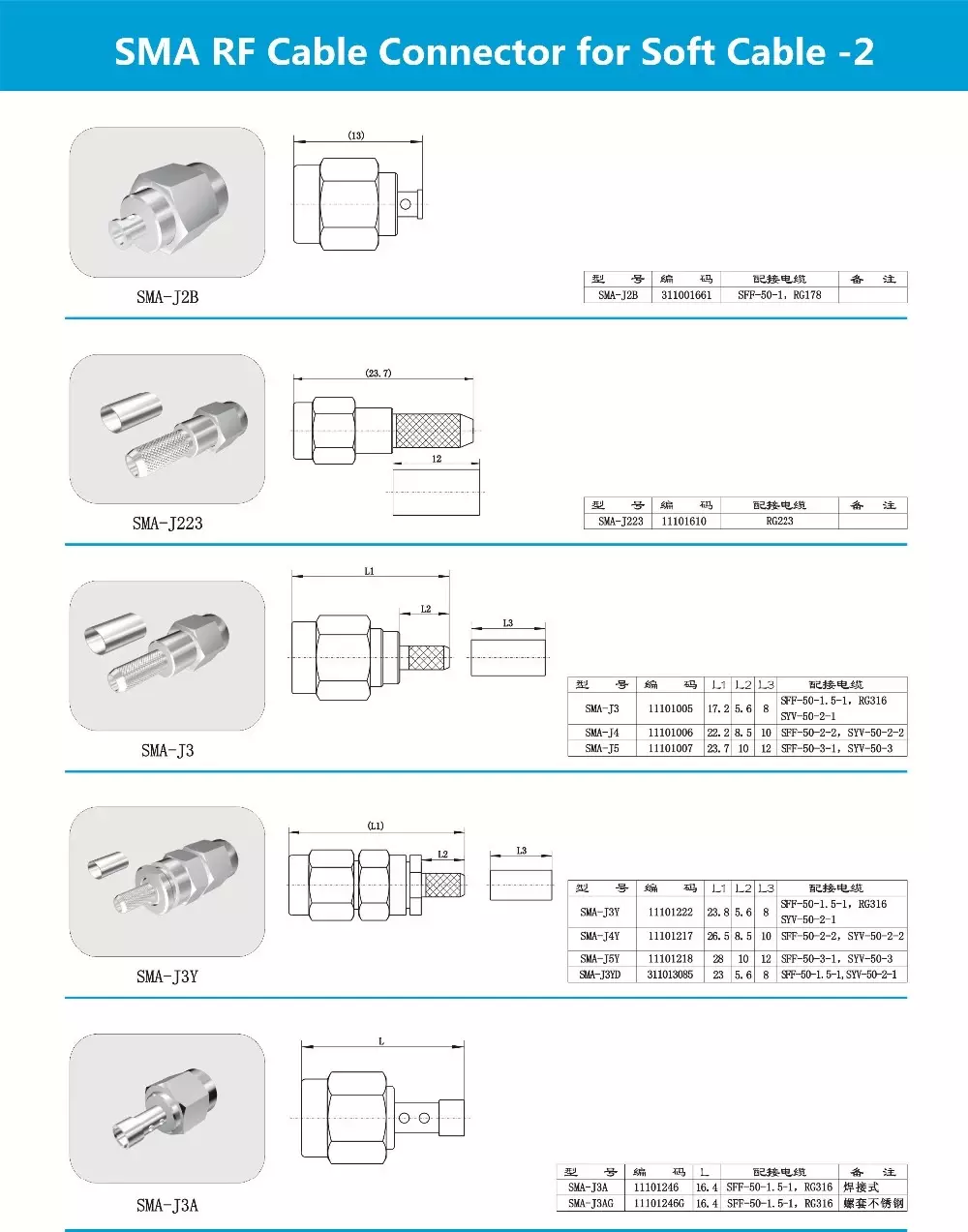

6.SMA-J2B SMA male connector for RG178 cable with length 13mm

7.SMA-J223, SMA male connector for RG223 cable with length 23.7mm

8.SMA-J3, SMA male connector for RG316 cable with length 17.2mm

9.SMA-J3Y, SMA male connector for RG316 cable with length 23.8mm

10.SMA-J3A, SMA male solder connector for RG316 cable with length 16.48mm

11.SMA-J3U, SMA male connector for RG316 cable with length 20mm

12.SMA-J300YG, SMA male connector for LMR300 cable with length 25.5mm

13.SMA-J400G, SMA male connector for LMR400 cable with length 32.7mm

14.SMA-J400G, Stainless steel SMA male connector for LMR400 cable with length 32.7mm

15.SMA-JW1, SMA male connector for SFF-50-0.6 cable with length 12mm

NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
