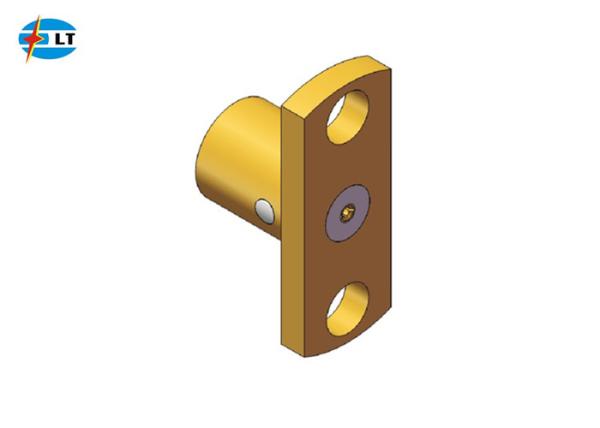

2 Holes Flange Mount SMP Male Push on Coaxial RF Connector

2 Holes Flange Mount SMP Male Push-on Coaxial RF Connector

SMP RF Connector Introduction

The SMP interface is a subminiature interface in the same scale as MMCX connectors but offers a freqquency range of DC to 40 GHz. The SMP interconnect series relies on floating female-to-female adapters (commonly called bullets) to achieve stacking of boards equipped with SMP male PCB connectors. This durable structure and ability to withstand radial and axial misalignment allows blind interconnection solutions. It is commonly used in miniaturized high frequency coaxial modules.

Features and Benefits

Frequency Range: DC - 40 GHz
Industry standard per MIL-STD-348
Gold plated & passivated stainless steel
Push-on or snap coupling
Male and Female, Straight and Right Angle choice
Normal type and hermetic seals Flange mount & Thread-In Mount choice
The plug has three interface form-full detent, limited detent and smooth bore(including with braking).
Custom connectors available

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor	Normal≤2.5mΩ, Sealing≤4mΩ
	Center conductor	Normal≤6mΩ, Sealing≤26mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Sn-P Bronze,gold plated
	Female	Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze	Gold plated
Shell and other Metal Parts	Brass Stainless steel	Gold plated Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	1.01325×10-3Pa·cm3/s

Detailed Drawing of

2 Holes Flange Mount SMP Male Push-on Coaxial RF Connector:

Model Number	Note
SMP-JFD95	Limited Detent

Applications

Antennas
Board-to-board interconnect
Telecommunications
Instrumentation

Product Cataloge:

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

N Type RF Connector

TNC RF Connector

MCX/MMCX RF Connector

BNC RF Connector

Millimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
