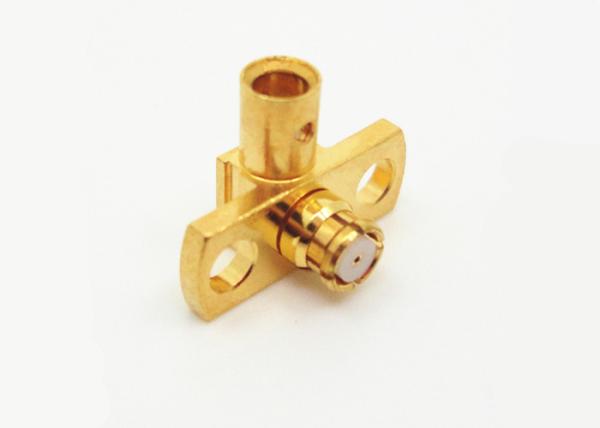

Gold Plated RF Coaxial SMP Female Jack RF Connector

SMP RF Connector Introduction

SMP is a sminiature push-on or snap coupling RF coaxial connector which has the characters of small size, light weight, excellent seismic performance and widely working broadband,etc. Its operating frequency up to 30GHz (our product of SMP connector can reach 40GHz) and the plug has three interface form-full detent, limited detent and smooth bore(including with braking).

Electrical Characteristics:

Material & Mechanical Characteristics:

Features and Benefits:

- DC to 40 GHz
- Sub-miniature
- Push-on or snap coupling
- Compact size
- Cable mount versions for both flexible and semi-rigid cable Materials
- PCB & cable mount connectors
- Gold plated
- Normal type and hermetic, Flange mount & Thread-In Mount choice
- Male& Female, Straight & Right Angle choice
- Full detent, Limited detent and Smooth bore

Applications:

• Antennas
• Board-to-board interconnect
• Telecommunications
• Instrumentation

Outline Drawing and Picture of

Custom Gold Plated RF Coaxial SMP Female Jack RF Connector:

Product Cataloge:

Packaging Details:
* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
