Female Limited Detent 2 Holes Flange SMP RF Connector

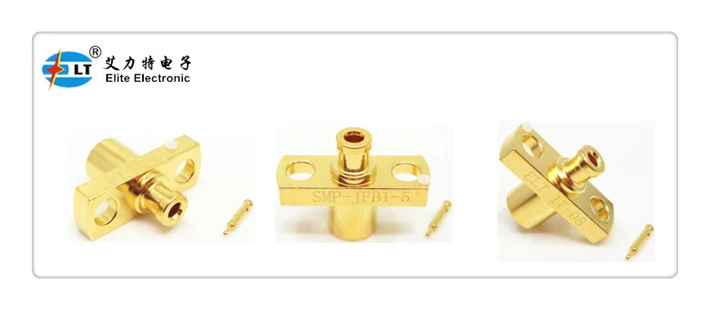

SMP Female Limited Detent 2-hole Flange SMP RF Connector

SMP RF Connector Introduction

SMP is a miniature push-on RF coaxial connector, which has the characters of small volume,light weight,excellent seismic performance and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz) and the plug has three interface form with full detent, limited detent and unthreaded hole(including with braking).Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connec tors. Apply for the install situation with the requirement of high reliability modular intensive.

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor	Normal≤2.5mΩ, Sealing≤4mΩ
	Center conductor	Normal≤6mΩ, Sealing≤26mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Sn-P Bronze,gold plated
	Female	Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze	Gold plated
Shell and other Metal Parts	Brass Stainless steel	Gold plated Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	1.01325×10-3Pa·cm3/s

Features and Benefits

DC to 40 GHz

Sub-miniature

Gold plated

Compact size

Male& Female, Straight & Right Angle choice

Push-on or snap coupling

PCB & cable mount connectors

Full detent, Limited detent and Smooth bore

Normal type and hermetic, Flange mount & Thread-In Mount choice

Cable mount versions for both flexible and semi-rigid cable Materials

Detailed Drawing of 50Ohm SMP Female Limited Detent 2-hole Flange SMP RF Connector :

Model Number	Cable Type	NOTE
SMP-JFB1-5	1#Semi-flexible/1#Semi-rigid	Limited Detent

Applications

- Antennas
- Broadband

- Instrumentation
- Board-to-board interconnect
- Phased array antennas

Product Cataloge:

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

N Type RF Connector

TNC RF Connector

MCX/MMCX RF Connector

BNC RF Connector

Millimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
