Kovar Male Bulkhead Smooth Bore Connector SMP Plug

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SMP-JYD91G-S
Certification :	CE ROHS ISO-9001-2015
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1000000 Pieces Per Month
Delivery Time :	Within in 3 weeks

Add to Cart

Product Details
Company Profile

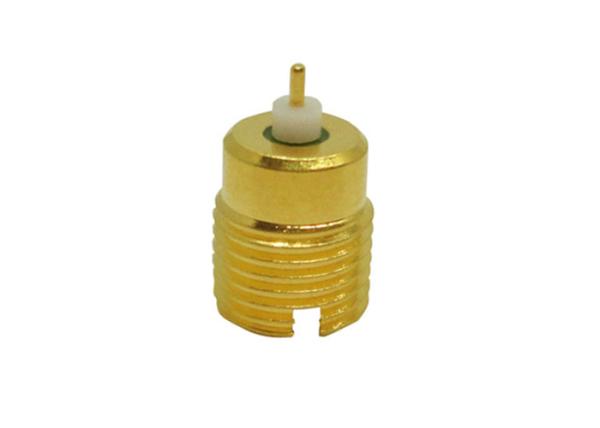

Kovar Male Bulkhead Smooth Bore Connector SMP Plug

Kovar Male bulkhead Smooth Bore Connector SMP Plug

SMP RF Connector Introduction

SMP is a miniature push-on RF coaxial connector,which has the characters of small volume,light weight,excellent seismic performance and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz) and the plug has three interface form with full detent, limited detent and unthreaded hole(including with braking).Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connectors. Apply for the install situation with the requirement of high reliability modular intensive.

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	≤2.5mΩ
	Center Cconductor	≤6mΩ
VSWR		DC~18GHz	18~26.5GHz	26.5~40GHz
	Straight Connector	≤1.25	≤1.3	≤1.5
	Adapter	≤1.2	≤1.3	≤1.5
	Other	≤1.3

Detailed Drawing of Kovar Male Bulkhead Smooth Bore Connector SMP Plug :

Features and Benefits

DC to 40GHz

Sub-miniature

Gold plated

Compact size

Male & Female, Straight & Right Angle choice

Push-on or snap coupling

PCB & cable mount connectors

Full detent, Limited detent and Smooth bore

Normal type and hermetic, Flange mount & Thread-In Mount choice

Cable mount versions for both flexible and semi-rigid cable Materials

Applications

- Antennas

- Instrumentation

- Broadband
- Board-to-board interconnect
- Phased array antennas

Product Cataloge:

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

N Type RF Connector

TNC RF Connector

MCX/MMCX RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
