TNC Female 4-hole Flange with Metal Convex Stand Termination RF Connector​

Mechanical Specification

Application:

* Cellular mobile telephones

* Instrumentation

* Base Station

* Network

* Radar

* Telecommunications

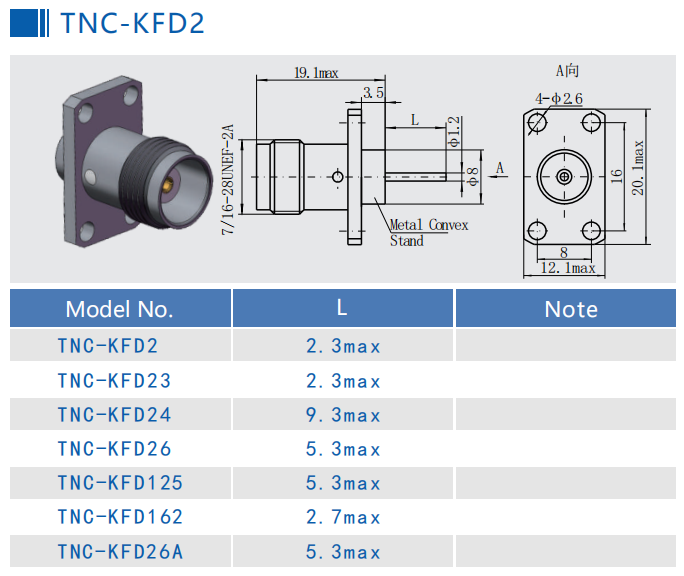

Detailed Drawing:

Unit:(mm)

Features:

1, TNC series RF Electronic connector is designed as a threaded version of BNC connector.

2, TNC RF connectors features screw threads for mating. RF TNC connectors are miniature, threaded waterproof units with a constant 50ohm impedance,operating fromDC-11ghz

3, There are two types of TNC connectors:standard and reverse polarity

4, These low cost china supplier factory RF connector typically utilize die cast and molded components.

5, While performance will not be equal to the industrial or military grade products,these RF crimp connectors are ideal for use on a varity of commercial applications

6,The TNC series products are a kind of whorl joining, it has work width frequently,join reliable.

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
