2 Holes Flange Mount Straight 50Ohm SMA Female Connector

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SMA-KFD768
Certification :	CE ROHS
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1,000,000 Pieces Per Month
Delivery Time :	Within 3 weeks

Add to Cart

Product Details
Company Profile

2 Holes Flange Mount Straight 50Ohm SMA Female Connector

2 Holes Flange Mount 50Ohm Straight SMA Female Connector

High Performance SMA RF Connectors:

SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).

Product Display of SMA Connector:

Our Advantange:

Qualified components supplier of China
20 years experience on RF & Microwave Components
Rich cooperation experience with national high tech projects
High performance and commercial grade components for choice
Strict quality (QA Report),ISO9001,ROHS,CE,UL
Factory area 35,000 sq.m with almost 1,000 experience staff
500+ national patents with 15 production lines
Annual output value above US$300 million
50+ series products with 100,000 types
Short delivery and competitive price
Custom-made(ODM) orders are welcomed

*Customization advantages Reliable performance Perfect production management system(ISO9001,ISO14001) we have experience about RF components more than ten years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.

Electrical Characteristics:

Impedance	50Ω
Frequency Range	DC~18GHz
Rated Voltage	335VRMS*
Dielectrics Voltage-resistance	1000VRMS*
Insulation Resistance	≥5000MΩ
Center Resistance	Center Conductor	≤3.0mΩ
	Outer Conductor	≤2.0mΩ
VSWR	≤1.3

Material & Mechanical Characteristics:

Center Conductor	Male	Brass Gold plated
	Female	Sn-P Bronze Gold plated
Elastic Contact		Beryllium bronze Nickel plated
Shell and other Metal Parts		Brass Nickel plated
		Stainless Passivation
Crimping Sleeve		Brass Nickel plated
Tightening torque of connection		0.79－1.13N .m
Durability		500 cycles
Sealing Ring		Silicone Rubber
Insulators		PTFE

Applicable Standard:

MIL-C-39012
IEC 60169-15

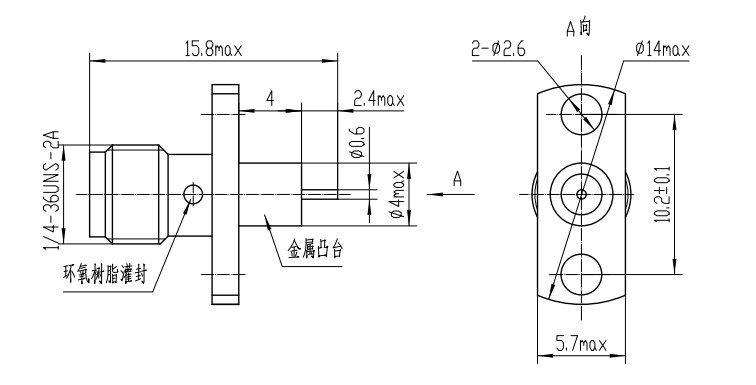

More Details of 2 Holes Flange Mount 50Ohm Straight SMA Female Connector :(Unit:mm)

Applications:

Microwave Systems
Telecommunications
5G Solutions
Measurement Systems
Mobile Telephone WiFi Antennas Systems

Our products contains:

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

With high quality and reasonable price we warmly welcome your business cooperation.
