Brass Gold Plated SMA Female RF Connector with Microstrip & Flange Mount

High Performance SMA RF Connectors:

The SMA RF coaxial connector is a compact, high-frequency coaxial connector designed in accordance with MIL-C-39012. It boasts several advantages, including its small size, broad frequency range, superior mechanical and electrical performance, and high reliability. As such, it is the most commonly used RF coaxial connector. Its widespread application can be found in microwave communications, microwave measurement equipment, and other related fields. The line of high-performance connectors developed by our company can support frequencies up to 20GHz.

Our Advantanges:

20 years experience on RF & Microwave Components
Qualified components supplier of China
Rich cooperation experience with national high tech projects
High performace and commercial grade components for choice
Strict quality (QA Report),ISO9001,ROHS,CE,UL
Factory area 35,000 sq.m with almost 1,000 experience staff
500+ national patents with 15 production lines
Annual output value above US$300 million
50+ series products with 100,000 types
Short delivery and competitive price
Custom-made(ODM) orders are welcomed

Applicable Standard:

MIL-C-39012
IEC 60169-15

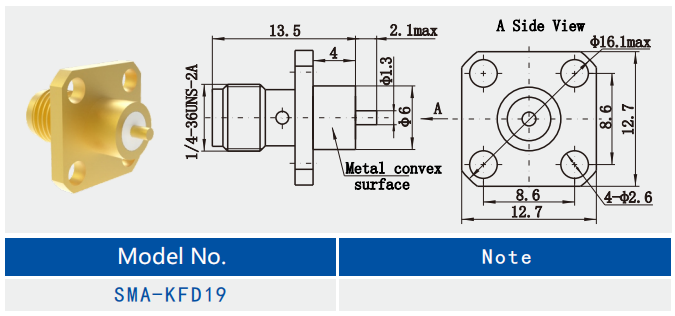

Product Display:

Electrical Characteristics:

Note:The specific data of the model are based on the data in the product specification sheet.

Impedance	50Ω
Frequency Range	DC~18GHz
Rated Voltage	335VRMS*
Dielectrics Voltage-resistance	1000VRMS*
Insulation Resistance	≥5000MΩ
Center Resistance	Center Conductor	≤3.0mΩ
	Outer Conductor	≤2.0mΩ
VSWR	≤1.3

Material & Mechanical Characteristics:

Center Conductor	Male	Brass Gold plated
	Female	Sn-P Bronze Gold plated
Elastic Contact		Beryllium bronze Nickel plated
Shell and other Metal Parts		Brass Nickel plated
		Stainless Passivation
Crimping Sleeve		Brass Nickel plated
Tightening torque of connection		0.79－1.13N .m
Durability		500 cycles
Sealing Ring		Silicone Rubber
Insulators		PTFE

Applications:

1. Microwave Communication: In wireless communication systems, including base stations, antenna systems, and other related equipment, SMA connectors are used to link different components in the signal path.

2. Measurement and Test Equipment: Precision microwave test equipment and network analyzers often use SMA connectors as signal input and output interfaces to ensure accurate measurements.

3. Satellite Communications: In satellite uplink and downlink systems, SMA connectors are used to connect ground station transmit and receive equipment.

4. Scientific Experiments: In scientific research, especially experiments involving RF signals, SMA connectors are commonly used to build connections between experimental setups and instruments.

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
