    SMA Female 2 Holes Flange Mount RF Coaxial Connectors

    Ask Lasest Price
    Brand Name : ELT (Elite)
    Model Number : SMA-KFD179
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1,000,000 Pieces Per Month
    Delivery Time : Within 3 weeks
    • Product Details
    • Company Profile

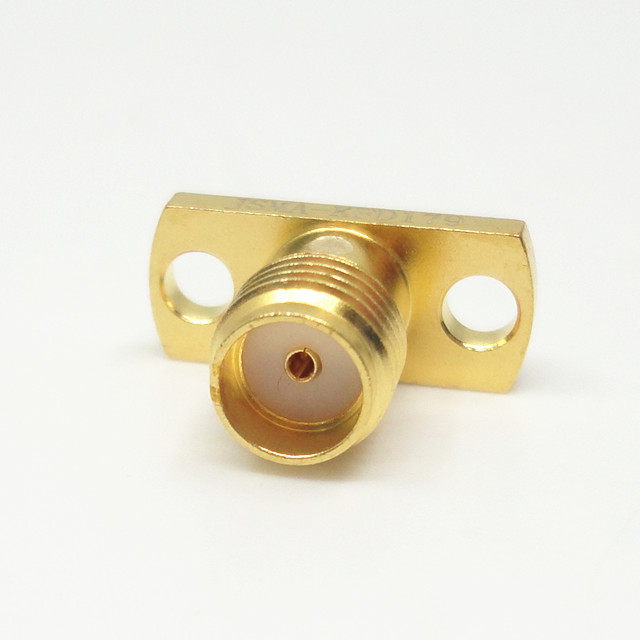

    SMA Female 2 Holes Flange Mount RF Coaxial Connectors

    SMA Female 2 Holes Flange Mount RF Coaxial Connectors

    1. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
    2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.
    3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
    4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).


    Specifiacation:

    Interface according toIEC60169-15
    Impedance50Ω
    Freqency RangeDC to 18GHz
    Insertion Loss≤0.30dB
    VSWR≤1.2(DC-6GHz)
    Insulation Resistance≥5000MΩ
    Center Contact Resistance≤3mΩ
    Outer Contact Resistance≤2mΩ
    Mating Cycles≥500
    Temperature Range-65-+165℃
    DielectricPTFE

    Application:

    * Broadband
    * Instrumentation
    * Phased array antennas
    * Telecommunications

    * Board-to-board interconnect

    * Base Station

    * Mobile communication

    * Outdoor facilities

    * Radar,microwave


    More Detail of SMA Female 2 Holes Flange Mount RF Coaxial Connectors :


    Product Display:


    NOTE:
    We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
