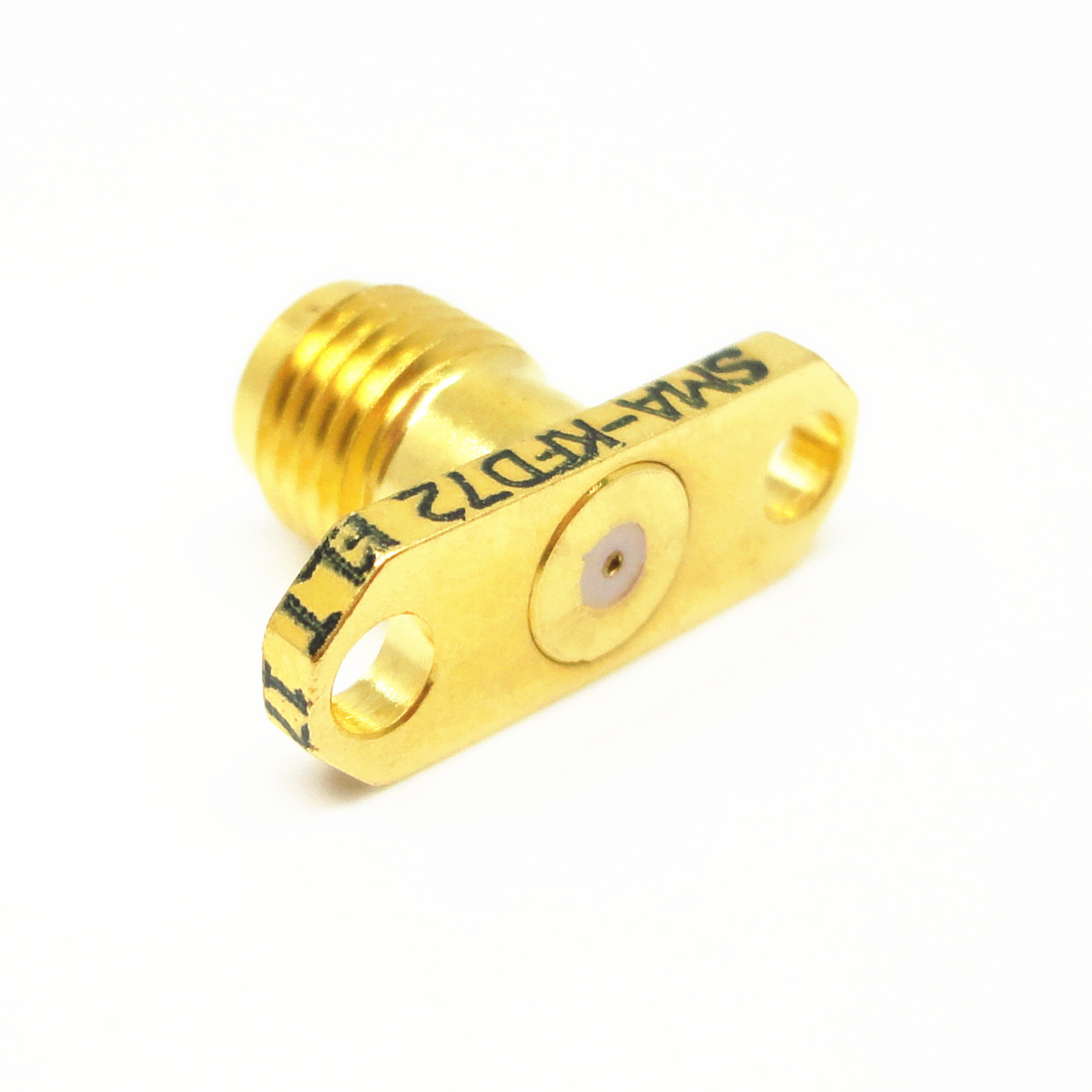

2 Holes Flange Mount SMA 50Ohm RF Female Connector

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	SMA-KFD72
Certification :	CE ROHS
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1,000,000 Pieces Per Month
Delivery Time :	Within 3 weeks

Add to Cart

Product Details
Company Profile

2 Holes Flange Mount SMA 50Ohm RF Female Connector

RF Female Connector 2 Holes Flange Mount 50 Ohm SMA

High Performance SMA RF Connectors:

1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).

Key Features of SMA RF Connectors:

Frequency range up to 18GHz Sub-miniature coaxial connectors

Using a threaded interface

Available in passivation or gold plating

Brass and stainless steel material options

Wide variety of orientations and PCB terminations

Available in straight or right angle versions

With bulkhead, 2 holes panel, 4 holes panel or mountless options.

Broad range with male, female and adapters variants.

RoHS compliant

Specifiacation:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.2(DC-6GHz)
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

More Detail of

SMA Female 2 Holes Flange Mount RF Coaxial Connectors :

(Unit:mm)

Applications:

Microwave Systems Telecommunications
5G Solutions
Measurement Systems
Mobile Telephone WiFi Antennas Systems

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
