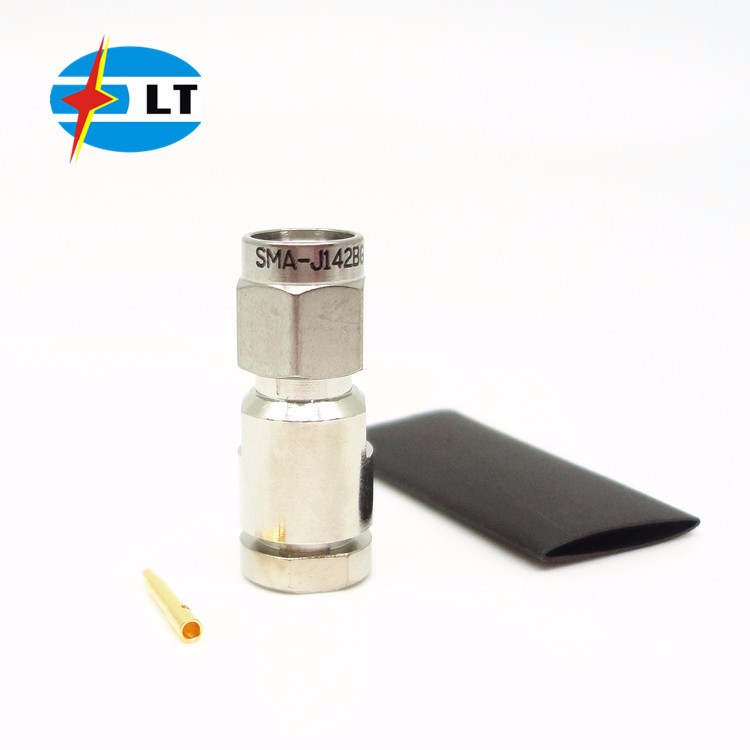

50Ohm SMA Straight Male Plug Connector RG142 Cable

1.SMA 50Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 20GHz and outstanding mechanical durability.

2.SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz

3.SMA RF connecons.tors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 holes panel configuration

4.Built in accordance with MIL-C-39012, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.

Specifiacation of SMA Rf Connectors:

Outline Drawing of SMA RF Coax Connectors:

Material & Mechanical Characteristics:

Key Features:

• Using a threaded interface
• Frequency range up to 18GHz Sub-miniature coaxial connectors
• Available in passivation or gold plating
• Wide variety of orientations and PCB terminations
• Available in straight or right angle versions
• With bulkhead, 2 holes panel, 4 holes panel or mountless options.
• Broad range with male, female and adapters variants.
• Brass and stainless steel material options

Applications

• Telecommunications
• Base Stations
• Antennas
• Instrumentation
• 5G Solution

Product Cataloge:

​NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!

Product Category:

1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub,MDM)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. ODM Products

Why Choose Us:

√ 22+ years experience on RF & Microwave Components
√ Qualified components supplier of more than 400 customers
√ Rich cooperation experience with national high tech projects
√ High reliable and commercial grade components for choice
√ Strict quality control under all grade standards in the industry
√ Factory area 75,000 sq.m with 1,000+ experienced staff
√ 500+ national patents with 16 production lines
√ Annual output value above US$300 million
√ 50+ series products with 100,000 types
√ Production Line Capacity: 30,000,000 PCS Per Year
√ Cleaning Workshop: Class 100,000
√ Short delivery and competitive price
√ Custom-made (ODM) orders are welcomed
√ Best-in class products
√ Excellent after-sales service
