High Frequency 2-holes Flange Mount 2.4mm RF Connector

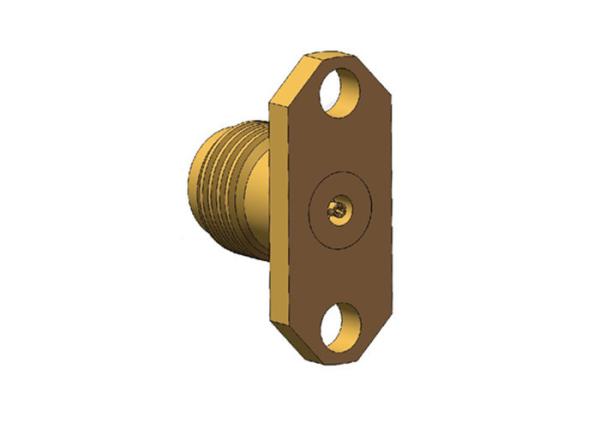

High frequency 2.4mm 2-holes Flange Mount Millimeter Wave Connector

2.4 Type product is a high performance millimeter wave connector, the frequency is 50GHz, use air interface threaded connect with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.

The high precision 50 Ohm coaxial 2.4mm connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.

Outline Drawing of 2.4mm RF Coaxial Conector:(mm)

Specification of 2.4mm RF Coaxial Conector:

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC～50GHz
Rated Voltage	170VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	500VRMS (Maximum sea-level)
Insulation Resistance	≥5000MΩ
Contact Resistance	Outer conductor	≤2mΩ
	Center conductor	≤3mΩ
VSMR	≤1.05+0.005f

Interface Dimentions:

Features:

• The 2.4mm connector is a precision microwave connectors.
• Stainless steel construction
• Superior electrical performance to 50GHz
• Connectors in End Launch and Flange options
• Adapters to 2.4mm, SMP, 2.92mm, SMA.
• Great for applications that require high frequency transmission
• Connector mating interface per MIL-STD-348
• Superior electrical performance up to 50GHz
• Excellent reliability where extreme shock & vibration conditions are experienced
• Quick connect cable plugs and adapter

Advantages:

	Normal products	Elite products
Frequency Range	DC~40GHz	DC~65GHz
VSWR	≤1.35	≤1.3
Durability	300 Cycles	>500 Cycles

Application:

Network
Radar
Automotive
Satcom
Computer/LANs
Broadband
Instrumentation
Phased array antennas
Telecommunications

Our Main Products:

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

TNC RF Connector

N Type RF Connector

MCX/MMCX RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

RF Cable Assemblies

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
