2.92mm K Type to SSMP Male Plug to Female Jack RF Adapter

Ask Lasest Price
Brand Name :	ELT (Elite)
Model Number :	K/SSMP-JKG
Certification :	ROHS ISO-9001-2015
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	1,000,000pcs per week
Delivery Time :	within 3 weeks

Add to Cart

Product Details
Company Profile

2.92mm K Type to SSMP Male Plug to Female Jack RF Adapter

K Type 2.92mm to SSMP Male Plug to Female Jack RF Adapter

1.SMP RF coaxial connector

SMP electrical connectors are snap-on RF coaxial connectors with subminiature size, light weight, good anti-vibration capability and wide frequency range up to 30 GHz (Our SMP coaxial RF connectors can reach up to 40 GHz or more), which makes them ideal RF connectors for intensive interconnection conditions where small size, high-performance and reliable connectors are needed.

2.K 2.92mm RF Connector

The high precision 50 ohm coaxial 2.92 mm (Female) to 2.4 mm (Male) adapters for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.

As manufacturer, we can customize K SMP connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.

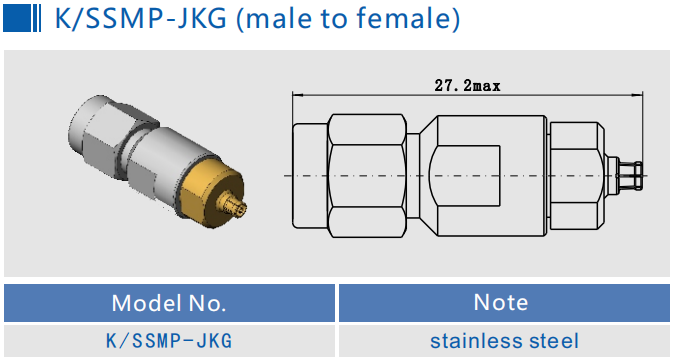

Outline Drawing and Picture(mm)

Other SMA Male Female to D4/SMP/MCX Male Female RF Adapter

Part Number	Description
K/SSMP-JK2G	K Type 2.92mm male to SSMP female rf adapter
K/SSMP-JK4G	K Type 2.92mm male to SSMP female rf adapter
K/SSMP-JJG	K Type 2.92mm male to SSMP male rf adapter
K/SSMP-KK1	K female to SSMP female rf adapter

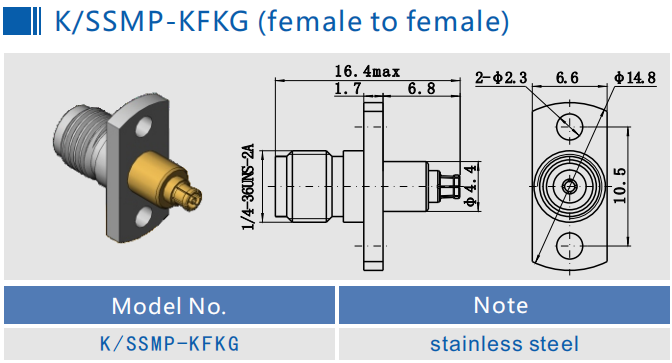

K/SSMP-KFKG	K female to SSMP female flange mount rf adapter
K/SSMP-KFJ1G	K female to SSMP male flange mount rf adapter

Application:

Network	Satcom
Computer/LANs	Computer/LANs
Mobile communication	Instrumentation
Base Station	Mobile communication
Outdoor facilities	Radar,microwave
Telecommunications	Instrumentation
Automotive	Jump line join
Basic facility	Radio, TV aerial system

Workshop & Exibition

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
