4 holes Flange Mount SMA Female Jack to BMA Male Plug Adapter

The SMA RF coaxial connector is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.

BMA series is a kinds of blind-mate connector, it’s developed and produced according to IEC1169-33. Adopted new type spring plate structure, the connector with reliable contact and superior electrical characteristics. The advantage is axial and radial can float, every point connectors average space is small, weight is light, it can be used in the blind mate of chassis cabinets. BMA is widely used in chassis cabinets module connect.

As manufacturer, we can customize BMA SMA connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.

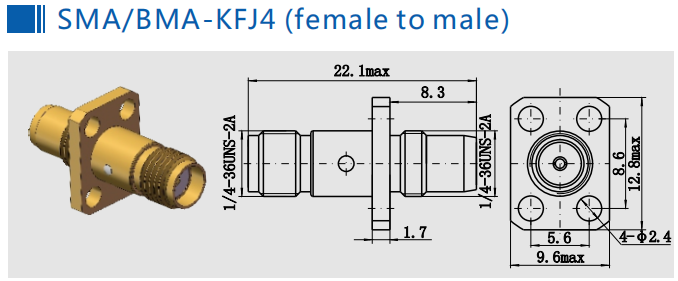

Outline Drawing and Picture(mm)

Other SMA Male Female to D4/SMP/MCX Male Female RF Adapter

1.

2.

3.

4.

5.

6.

Application:

Workshop & Exibition

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!
