2.92MM Connector Plug 2 holes Flange (MMW)Millimeter Wave Connector

K type is also called 2.92 type connector, this series of products is a Commonly used millimeter wave connectors, with a frequency of up to 40 GHz, can be used with SMA series and 3.5 series products are interchangeable and adopt air interface.With small size, light weight, high frequency of use, reliable connection, etc.

Features:

• It can mate and interchange with SMA series, K series ,2.4mm,3.5mm connectors.
• Superior electrical performance up to 40 GHz
• It have the advantages of small volume, light weight, high use frequency, reliable connect.
• Great for applications that require high frequency transmission
• Connector mating interface per MIL-STD-348
• Female contacts have unique three-slot construction
• An air dielectric with a loss-loss plastic center conductor support.
• It have the high use frequency, reliable connect.

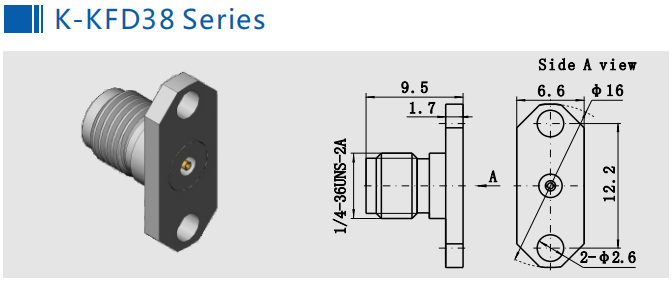

Outline Drawing of 50 Ohm Stainless steel 2.92mm Type K Male RF Coaxial Connector:(mm)

Specification:

Other 2.92mm Male Female RF Connector:

2.

3.

4.

Application:

* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Satcom
* Computer/LANs
* Telecommunications
* Navigation systems
* Research centres
* Satellite communication
